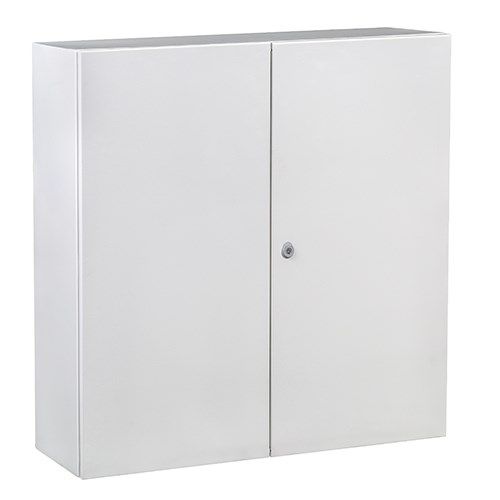

IDE MSB121230DDG Mild Steel Enclosure Cold Rolled Steel 1200W 1200H 300D RAL7035 Light Grey IP55

Product Code: MSB121230DDG

  • IP55 protection for dust and splash resistance
  • Cold rolled steel with UV-protected finish
  • Double reversible door with 3-point lock
  • Suitable for industrial environments
  • Rated impact resistance: IK10
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 1200H x 1200W x 300D
No. of Locks 3 points
Mounting Plate Size (mm) 1170W x 1150H
Thickness (mm) Enclosure: 1.5 Door: 2 Cable entry lid: 2
Usable Internal Space (mm) 1150H x 1150W x 279D
Weight (kg) 89.4
No. of Hinges 6
Certifications UL508A
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
EAN 8431044033945
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Double opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 760H x 960W
Cable Entry (mm) 2 x (125H x 485W)
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry (2) 125 mm H x 485 mm W
Colour Light Grey RAL 7035
Degree of Protection IP55
Depth 300 mm
Door Profiles 4
Door Type Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 1200 mm
Lock Type 5 mm Double-Bit Lock, (1) 3-Point Lock
Material Cold Rolled Steel
Mounting Plate Size 1150 mm H x 1170 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 12
Number of Hinges 6
Number of Locks 3
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 1150 mm H x 1150 mm W x 279 mm D
Wall Fixing Dimensions 760 mm H x 960 mm W
Weight 89.4 kg
Width 1200 mm

Description

The mild steel enclosure has a grey RAL7035 polyester powdercoat finish and is rated IP55. It features a double door with a 110-degree reversible opening, equipped with a 3-point locking rod and 3 hinges. The enclosure is sealed with an injected polyurethane sealing gasket. There are two cable entries, each measuring 140x500mm. The dimensions of the enclosure are 1200mm in height, 1200mm in width, and 300mm in depth.
