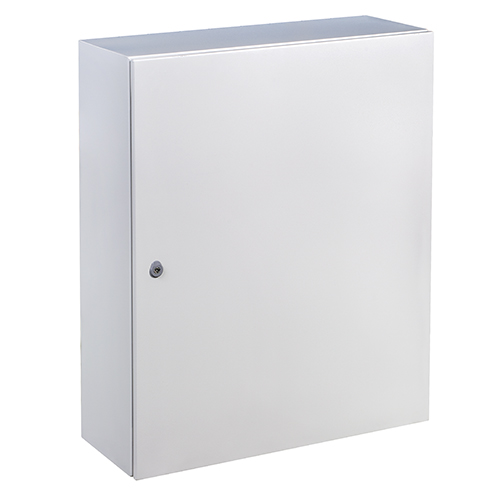

IDE MSB126040G Mild Steel Enclosure Cold Rolled Steel 600W 1200H 400D RAL7035 Light Grey IP66

Product Code: MSB126040G

  • IP66 rated for dust and water protection
  • Made from cold rolled steel with UV protection
  • Supports up to 390 kg load capacity
  • Versatile single/double reversible door
  • Meets IEC, UL standards for safety and quality
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 1200H x 600W x 400D
No. of Locks 3 points
Mounting Plate Size (mm) 1170W x 550H
Thickness (mm) Enclosure: 1.5 Door: 2 Cable entry lid: 2
Usable Internal Space (mm) 1150H x 550W x 279D
Weight (kg) 53.9
No. of Hinges 3
Certifications UL508A
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
EAN 8431044491608
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 1160H x 1160W
Cable Entry (mm) 125H x 485W
Maximum Cabinet Load (kg) 390
Maximum Mounting Plate Load (kg) 350
Maximum Door Load (kg) 40
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 485 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 400 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 1200 mm
Lock Type 5 mm Double-Bit Lock, (1) 3-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 390 kg
Maximum Door Load 40 kg
Maximum Mounting Plate Load 350 kg
Mounting Plate Size 550 mm H x 1170 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 3
Number of Locks 3
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 1150 mm H x 550 mm W x 279 mm D
Wall Fixing Dimensions 1160 mm H x 1160 mm W
Weight 53.9 kg
Width 600 mm

Description

This mild steel enclosure features a grey RAL7035 polyester powdercoat finish and has an IP66 rating for protection against dust and water. The single door can be opened up to 110 degrees and is reversible for convenience. It is equipped with a 3-point locking rod and 3 hinges for secure closure. The enclosure also includes an injected polyurethane sealing gasket to ensure a tight seal. It has a cable entry size of 140x500 and overall dimensions of 1200Hx600Wx400Dmm.
