Specifications

Ambient Temperature Range (°C)	-25 to +60
Dimensions (mm)	900W x 1200H x 300D
No. of Locks	3P
Maximum Operational Voltage AC (V)	1000/1500
No. of Hinges	3
Certifications	UL508A
Type of Door	Single opaque door. Reversible
Sealing Gasket	Injected polyurethane sealing gasket
Net Weight (kg)	67.5

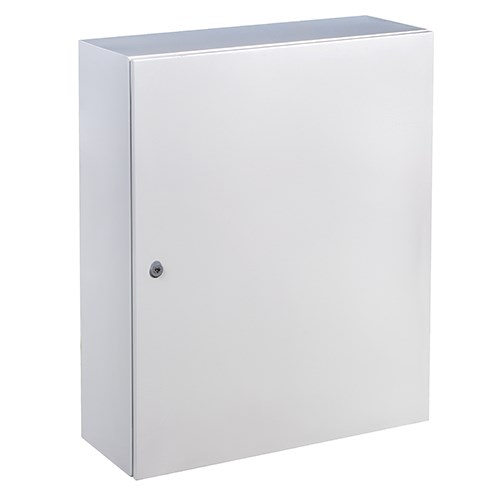

Product Type	Mild Steel Enclosure
Brand	IDE
Ambient Temperature	-25 to 60 deg C
Colour	Light Grey RAL 7035
Degree of Protection	IP66
Depth	300 mm
Door Profiles	2
Door Type	Single/Double Reversible
Gasket Material	Polyurethane
Height	1200 mm
Material	Cold Rolled Steel
Net Weight	67.5 kg
Number of Hinges	3
Number of Locks	3
Rated Operational Voltage	1000 VAC, 1500 VDC
Standards and Approvals	IEC 62208, IEC 61439-1, UL 508A
Width	900 mm
