Specifications

Ambient Temperature Range (°C)	-25 to +60
Dimensions (mm)	200W x 250H x 150D
No. of Locks	1
Maximum Operational Voltage AC (V)	1000/1500
No. of Hinges	2
Certifications	UL508A
Type of Door	Single opaque door. Reversible
Sealing Gasket	Injected polyurethane sealing gasket
Net Weight (kg)	3.7

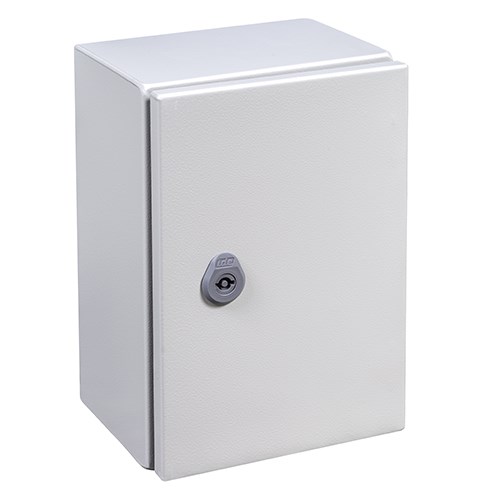

Product Type	Mild Steel Enclosure
Brand	IDE
Ambient Temperature	-25 to 60 deg C
Colour	Light Grey RAL 7035
Degree of Protection	IP66
Depth	150 mm
Door Profiles	1
Door Type	Single/Double Reversible
Gasket Material	Polyurethane
Height	250 mm
Material	Cold Rolled Steel
Net Weight	3.7 kg
Number of Hinges	2
Number of Locks	1
Rated Operational Voltage	1000 VAC, 1500 VDC
Standards and Approvals	IEC 62208, IEC 61439-2, UL 508A
Width	200 mm
