Metal Enclosures & Accessories


Product Code: MSB303015G

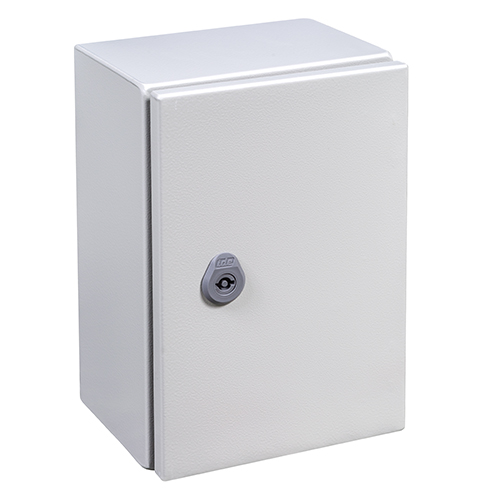

This mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, ensuring protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It is secured with a metal 5mm double bit lock and two hinges for added durability. The injected polyurethane sealing gasket provides a tight seal to prevent any moisture or dust from entering the enclosure. With cable entry measuring 80x200, this enclosure has dimensions of 300Hx300Wx150Dmm, providing ample space for your equipment.

Technical Specifications

Brand IDE
Ambient Temperature Range (°C) -25 to +60
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm) 65H x 185W
Certifications UL508A
Colour RAL 7035
Customs Tariff Number
Degree of Protection IP66
Dimensions (mm) 300H x 300W x 150D
Directive 2014/35/EU
Door Profiles 2
Door Type Single
EAN 8431044490229
ETIM 8.0 EC000261
Finish Coated with primer, and hardened polyester paint, textured, with UV protection
Installation Surface
Lock Type 5-mm double-bit lock - One 1-point lock
Material Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg) 150
Maximum Door Load (kg) 25
Maximum Mounting Plate Load (kg) 125
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm) 270W x 250H
NEMA Degree of Protection NEMA 1, 12, 4
No. of Hinges 2
No. of Locks 1
Product End of Life It does not require specific recycling operations.
Rated Impact Resistance IK08
Sealing Gasket Injected polyurethane sealing gasket
Standards IEC 62208, IEC 61439-1
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Thickness (mm) Enclosure: 1.2 Door: 1.2 Cable entry lid: 2
Type of Door Single opaque door. Reversible
Usable Internal Space (mm) 250H x 250W x 129D
Wall Fixing (mm) 260H x 260W
Weight (kg) 5.8
