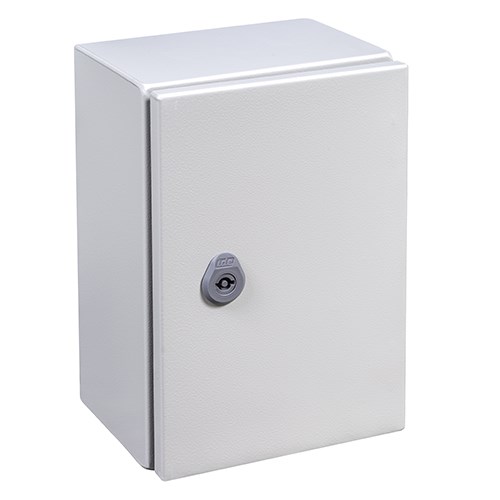

IDE MSB406030G Mild Steel Enclosure Cold Rolled Steel 600W 400H 300D RAL7035 Light Grey IP66

Product Code: MSB406030G

  • IP66 protection against dust and water ingress
  • Sturdy cold rolled steel construction
  • Versatile single/double reversible door
  • Rated for 1000 VAC, 1500 VDC operation
  • Robust design with IK10 impact resistance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 400H x 600W x 300D
No. of Locks 1
Mounting Plate Size (mm) 370W x 550H
Thickness (mm) Enclosure: 1.2Door: 1.2 Cable entry lid: 2
Usable Internal Space (mm) 350H x 550W x 279D
Weight (kg) 17
No. of Hinges 2
Certifications UL508A
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
EAN 8431044490458
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 260H x 260W
Cable Entry (mm) 125H x 485W
Maximum Cabinet Load (kg) 225
Maximum Mounting Plate Load (kg) 200
Maximum Door Load (kg) 25
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 485 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 300 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 400 mm
Lock Type 5 mm Double-Bit Lock, (1) 1-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 225 kg
Maximum Door Load 25 kg
Maximum Mounting Plate Load 200 kg
Mounting Plate Size 550 mm H x 370 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 2
Number of Locks 1
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 350 mm H x 550 mm W x 279 mm D
Wall Fixing Dimensions 260 mm H x 260 mm W
Weight 17 kg
Width 600 mm

Description

This mild steel enclosure features a grey RAL7035 polyester powdercoat finish and has an IP66 rating for protection against dust and water. The single door can be opened up to 110 degrees and is reversible for convenience. It is equipped with one metal 5mm double bit lock and two hinges for secure closure. The enclosure also includes an injected polyurethane sealing gasket to ensure a tight seal. With a cable entry size of 140x500, it has dimensions of 400Hx600Wx300Dmm.
