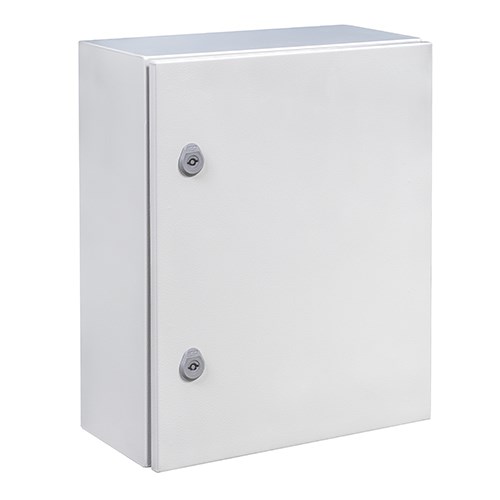

IDE MSB505025G Mild Steel Enclosure Cold Rolled Steel 500W 500H 250D RAL7035 Light Grey IP66

Product Code: MSB505025G

  • IP66 protection for harsh environments
  • Cold rolled steel construction
  • Rated for 1000 VAC and 1500 VDC
  • UV-protected polyester paint finish
  • NEMA 1, 4, 12 rated for versatility
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 500H x 500W x 250D
No. of Hinges 2
Thickness (mm) Enclosure: 1.2 Door: 1.2 Cable entry lid: 2
Usable Internal Space (mm) 450H x 450W x 229D
Weight (kg) 15.6
Certifications UL508A
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
EAN 8431044490564
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 260H x 260W
Cable Entry (mm) 125H x 385W
Maximum Cabinet Load (kg) 225
Maximum Mounting Plate Load (kg) 200
Maximum Door Load (kg) 25
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 385 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 250 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 500 mm
Lock Type 5 mm Double-Bit Lock, (1) 2-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 225 kg
Maximum Door Load 25 kg
Maximum Mounting Plate Load 200 kg
Mounting Plate Size 2 mm
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 2
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 450 mm H x 450 mm W x 229 mm D
Wall Fixing Dimensions 260 mm H x 260 mm W
Weight 15.6 kg
Width 500 mm

Description

This mild steel enclosure features a grey RAL7035 polyester powdercoat and has an IP66 rating. It has a single door with a 110-degree reversible opening, equipped with two metal 5mm double bit locks and two hinges. The enclosure is sealed with an injected polyurethane sealing gasket. It has a cable entry size of 140x300 and dimensions of 500Hx500Wx250Dmm.
