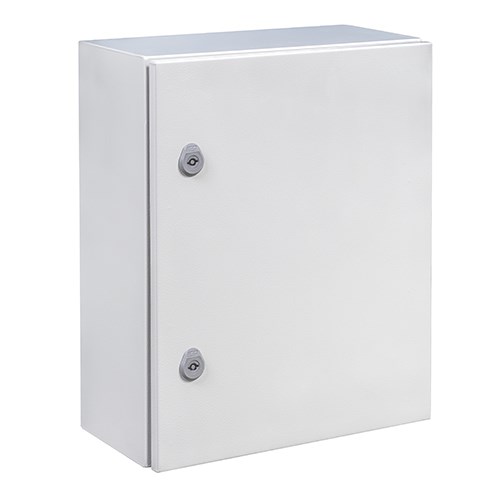

IDE MSB507020G Wall Mounted Enclosure Single/Double Reversible Door 5 Double-Bit Lock (1) 2-Point Lock Lock 700W

Product Code: MSB507020G

  • IP66 protection for harsh environments
  • Cold rolled steel construction
  • Suitable for 1000 VAC, 1500 VDC systems
  • UV-protected textured finish
  • Reversible single/double door design
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 500H x 700W x 200D
No. of Locks 2
Mounting Plate Size (mm) 470W x 650H
Thickness (mm) Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Usable Internal Space (mm) 450H x 650W x 179D
Weight (kg) 22
No. of Hinges 2
Certifications UL508A
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
EAN 8431044075631
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 260H x 260W
Cable Entry (mm) 125H x 485W
Maximum Cabinet Load (kg) 225
Maximum Mounting Plate Load (kg) 200
Maximum Door Load (kg) 25
Product Type Wall Mounted Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 485 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 200 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 500 mm
Lock Type 5 mm Double-Bit Lock, (1) 2-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 225 kg
Maximum Door Load 25 kg
Maximum Mounting Plate Load 200 kg
Mounting Plate Size 650 mm H x 470 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 2
Number of Locks 2
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, ETIM 8.0 EC000261, IEC 61439-1, IEC 62208
Usable Internal Space 450 mm H x 650 mm W x 179 mm D
Wall Fixing Dimensions 260 mm H x 260 mm W
Weight 22 kg
Width 700 mm

Description

The mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, indicating its high level of protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It is secured with two metal 5mm double bit locks and supported by two hinges. The enclosure features an injected polyurethane sealing gasket to ensure a tight seal. It has a cable entry size of 140x500 and dimensions of 500Hx700Wx200Dmm, providing ample space for equipment installation.
