Metal Enclosures & Accessories


Product Code: MSB606020G

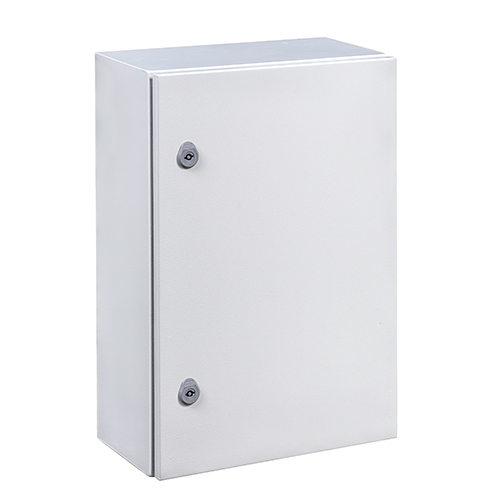

This mild steel enclosure features a grey RAL7035 polyester powdercoat and has an IP66 rating. It has a single door with a 110-degree reversible opening, equipped with 2 metal 5mm double bit locks and 2 hinges. The enclosure also includes an injected polyurethane sealing gasket for added protection. It has a cable entry size of 140x500 and dimensions of 600Hx600Wx200Dmm.

Technical Specifications

Brand IDE
Ambient Temperature Range (°C) -25 to +60
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts.
Cable Entry (mm) 125H x 485W
Certifications UL508A
Colour RAL 7035
Customs Tariff Number
Degree of Protection IP66
Dimensions (mm) 600H x 600W x 200D
Directive 2014/35/EU
Door Profiles 2
Door Type Single
EAN 8431044490731
ETIM 8.0 EC000261
Finish Coated with primer, and hardened polyester paint, textured, with UV protection
Installation Surface
Lock Type 5-mm double-bit lock - Two 1-point lock
Material Cold-rolled steel EN 10130+A1
Maximum Cabinet Load (kg) 275
Maximum Door Load (kg) 25
Maximum Mounting Plate Load (kg) 250
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Mounting Plate Size (mm) 570W x 550H
NEMA Degree of Protection NEMA 1, 12, 4
No. of Hinges 2
No. of Locks 2
Product End of Life It does not require specific recycling operations.
Rated Impact Resistance IK10
Sealing Gasket Injected polyurethane sealing gasket
Standards IEC 62208, IEC 61439-1
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
Thickness (mm) Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Type of Door Single opaque door. Reversible
Usable Internal Space (mm) 550H x 550W x 179D
Wall Fixing (mm) 260H x 260W
Weight (kg) 22.4
