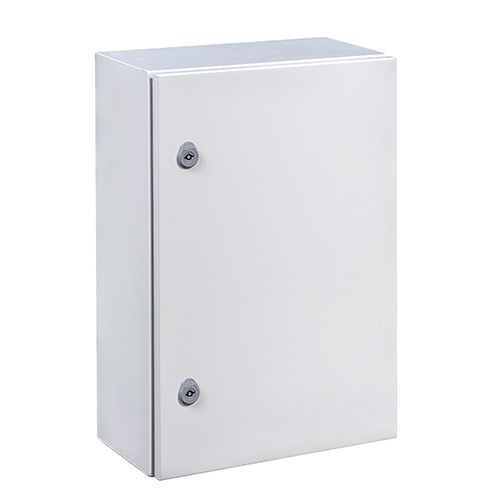

IDE MSB606025G Mild Steel Enclosure Cold Rolled Steel 600W 600H 250D RAL7035 Light Grey IP66

Product Code: MSB606025G

  • Wall-mount cabinet with IP66 protection
  • Supports up to 275 kg load capacity
  • Cold rolled steel, light grey RAL 7035
  • Rated for -25 to 60°C ambient temp
  • Meets IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 600H x 600W x 250D
No. of Hinges 2
Thickness (mm) Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Usable Internal Space (mm) 550H x 550W x 229D
Weight (kg) 24
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied unassembled inside the packaging.
EAN 8431044490748
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 260H x 260W
Cable Entry (mm) 125H x 485W
Maximum Cabinet Load (kg) 275
Maximum Mounting Plate Load (kg) 250
Maximum Door Load (kg) 25
Certifications UL508A
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 485 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 250 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 600 mm
Lock Type 5 mm Double-Bit Lock, (1) 2-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 275 kg
Maximum Door Load 25 kg
Maximum Mounting Plate Load 250 kg
Mounting Plate Size 2 mm
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 2
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 550 mm H x 550 mm W x 229 mm D
Wall Fixing Dimensions 260 mm H x 260 mm W
Weight 24 kg
Width 600 mm

Description

This mild steel enclosure features a grey RAL7035 polyester powdercoat and has an IP66 rating. It has a single door with a 110-degree reversible opening, equipped with 2 metal 5mm double bit locks and 2 hinges. The enclosure also includes an injected polyurethane sealing gasket for added protection. It has a cable entry size of 140x500 and dimensions of 600Hx600Wx250Dmm.
