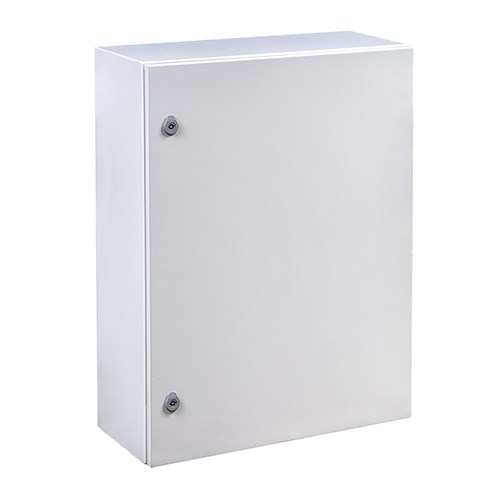

IDE MSB801030G Mild Steel Enclosure Cold Rolled Steel 1000W 800H 300D RAL7035 Light Grey IP66

Product Code: MSB801030G

  • Wall-mounting cabinet with IP66 protection
  • Cold rolled steel construction for durability
  • Suitable for 1000 VAC and 1500 VDC systems
  • Operates in -25 to 60°C ambient temperatures
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 1000W x 800H x 300D
No. of Locks 2
Maximum Operational Voltage AC (V) 1000/1500
No. of Hinges 2
Type of Door Single opaque door. Reversible
Sealing Gasket Injected polyurethane sealing gasket
Certifications UL508A
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 300 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 800 mm
Material Cold Rolled Steel
Number of Hinges 2
Number of Locks 2
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-66, UL 508A
Width 1000 mm
