Specifications

Ambient Temperature Range (°C)	-25 to +60
Dimensions (mm)	1000W x 800H x 400D
No. of Locks	3P
Maximum Operational Voltage AC (V)	1000/1500
No. of Hinges	6
Certifications	UL508A
Type of Door	Double opaque door, Reversible
Sealing Gasket	Injected polyurethane sealing gasket
Net Weight (kg)	55.9

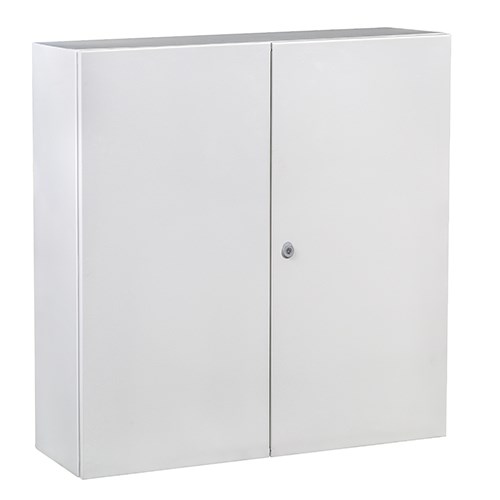

Product Type	Mild Steel Enclosure
Brand	IDE
Ambient Temperature	-25 to 60 deg C
Colour	Light Grey RAL 7035
Degree of Protection	IP55
Depth	400 mm
Door Profiles	4
Door Type	Double Reversible
Gasket Material	Polyurethane
Height	800 mm
Material	Cold Rolled Steel
Net Weight	55.9 kg
Number of Hinges	6
Number of Locks	3
Rated Operational Voltage	1000 VAC, 1500 VDC
Standards and Approvals	IEC 62208, IEC 61439-68, UL 508A
Width	1000 mm
