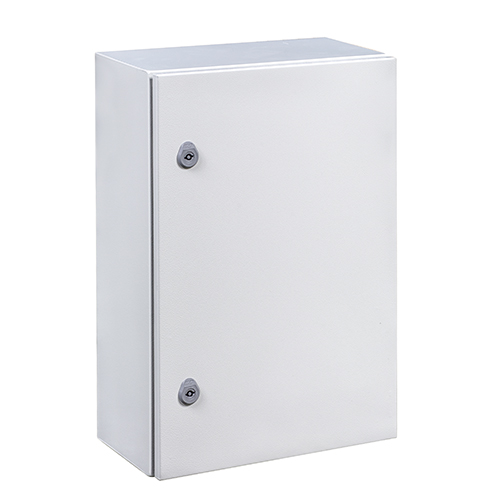

IDE MSB806030G Mild Steel Enclosure Cold Rolled Steel 600W 800H 300D RAL7035 Light Grey IP66

Product Code: MSB806030G

  • Wall-mount cabinet with IP66 protection
  • Cold rolled steel, light grey RAL 7035
  • Rated for 1000 VAC/1500 VDC use
  • Single/double reversible door options
  • IK10 impact resistance rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 800H x 600W x 300D
No. of Locks 2
Mounting Plate Size (mm) 770W x 550H
No. of Hinges 3
Thickness (mm) Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Usable Internal Space (mm) 750H x 550W x 279D
Weight (kg) 32.6
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
EAN 8431044491202
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 760H x 960W
Cable Entry (mm) 125H x 485W
Maximum Cabinet Load (kg) 325
Maximum Mounting Plate Load (kg) 300
Maximum Door Load (kg) 25
Certifications UL508A
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 485 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 300 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 800 mm
Lock Type 5 mm Double-Bit Lock, (1) 2-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 325 kg
Maximum Door Load 25 kg
Maximum Mounting Plate Load 300 kg
Mounting Plate Size 550 mm H x 770 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 3
Number of Locks 2
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 750 mm H x 550 mm W x 279 mm D
Wall Fixing Dimensions 760 mm H x 960 mm W
Weight 32.6 kg
Width 600 mm

Description

This mild steel enclosure is coated with a grey RAL7035 polyester powdercoat, making it resistant to corrosion. It has an IP66 rating, ensuring protection against dust and water ingress. The single door can be opened up to 110 degrees and is reversible for convenience. It is secured with two metal 5mm double bit locks and three hinges for added durability. The injected polyurethane sealing gasket provides a tight seal to prevent any moisture or dust from entering the enclosure. With a cable entry of 140x500, it allows for easy installation of cables. The dimensions of the enclosure are 800mm in height, 600mm in width, and 300mm in depth.
