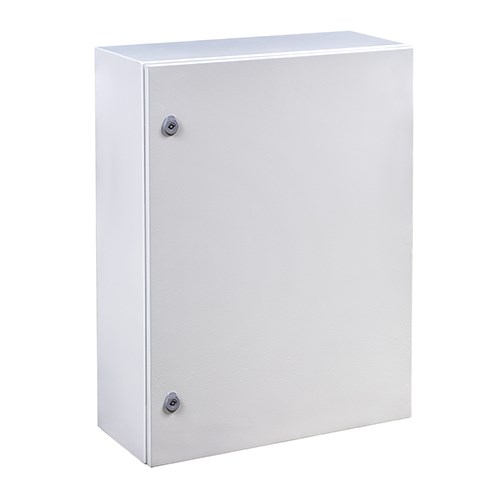

IDE MSB808020G Mild Steel Enclosure Cold Rolled Steel 800W 800H 200D RAL7035 Light Grey IP66

Product Code: MSB808020G

  • IP66 rated for dust and water protection
  • Made of durable cold rolled steel
  • Operates in -25 to 60°C temperature range
  • Supports up to 325 kg load capacity
  • Complies with IEC, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 800H x 800W x 200D
No. of Locks 2
Mounting Plate Size (mm) 770W x 750H
Thickness (mm) Enclosure: 1.5 Door: 1.5 Cable entry lid: 2
Usable Internal Space (mm) 750H x 750W x 129D
Weight (kg) 37
No. of Hinges 3
Certifications UL508A
Supply Supplied in individual packaging containing cabinet, plate and accessory bag. Mounting plate is supplied assembled inside the cabinet.
EAN 8431044491288
Customs Tariff Number 85.38.10.00
ETIM 8.0 EC000261
Product End of Life It does not require specific recycling operations.
Installation Surface
Type of Door Single opaque door. Reversible
Mounting Plate With flat mounting plate. 2-mm galvanised sheet steel
Sealing Gasket Injected polyurethane sealing gasket
NEMA Degree of Protection NEMA 1, 12, 4
Maximum Operational Voltage (V) 1000 AC / 1500 DC
Directive 2014/35/EU
Wall Fixing (mm) 760H x 960W
Cable Entry (mm) 125H x 685W
Maximum Cabinet Load (kg) 325
Maximum Mounting Plate Load (kg) 300
Maximum Door Load (kg) 25
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Application Industrial environments, manufacturing companies requiring a high degree of protection against dust, splashes and impacts
Cable Entry 125 mm H x 685 mm W
Colour Light Grey RAL 7035
Degree of Protection IP66
Depth 200 mm
Door Profiles 2
Door Type Single/Double Reversible
Finish Coated with Primer, Hardened Polyester Paint, Textured with UV Protection
Gasket Material Polyurethane
Height 800 mm
Lock Type 5 mm Double-Bit Lock, (1) 2-Point Lock
Material Cold Rolled Steel
Maximum Cabinet Load 325 kg
Maximum Door Load 25 kg
Maximum Mounting Plate Load 300 kg
Mounting Plate Size 750 mm H x 770 mm W x 2 mm D
Mounting Type Surface
NEMA Rating NEMA 1, 4, 12
Number of Hinges 3
Number of Locks 2
Rated Impact Resistance IK10
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals Directive 2014/35/EU, IEC 61439-1, IEC 62208, UL 508A
Usable Internal Space 750 mm H x 750 mm W x 129 mm D
Wall Fixing Dimensions 760 mm H x 960 mm W
Weight 37 kg
Width 800 mm

Description

This mild steel enclosure features a grey RAL7035 polyester powdercoat and has an IP66 rating. It has a single door with a 110-degree reversible opening, equipped with two metal 5mm double bit locks and three hinges. The enclosure is sealed with an injected polyurethane sealing gasket. It has a cable entry size of 140x700 and dimensions of 800Hx800Wx200Dmm.
