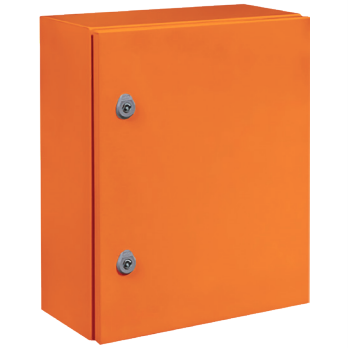

IDE MSB126040A Mild Steel Enclosure Cold Rolled Steel 600W 1200H 400D RAL2008 Orange IP66

Product Code: MSB126040A

  • IP66 rated for robust protection
  • Made from durable cold rolled steel
  • Reversible single/double door design
  • Operates in temp range -25 to 60°C
  • Complies with IEC and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 600W x 1200H x 400D
No. of Locks 3P
Maximum Operational Voltage AC (V) 1000/1500
No. of Hinges 3
Type of Door Single opaque door. Reversible
Sealing Gasket Injected polyurethane sealing gasket
Net Weight (kg) 53.9
Certifications UL508A
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Orange RAL 2008
Degree of Protection IP66
Depth 400 mm
Door Profiles 2
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 1200 mm
Material Cold Rolled Steel
Net Weight 53.9 kg
Number of Hinges 3
Number of Locks 3
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-1, UL 508A
Width 600 mm
