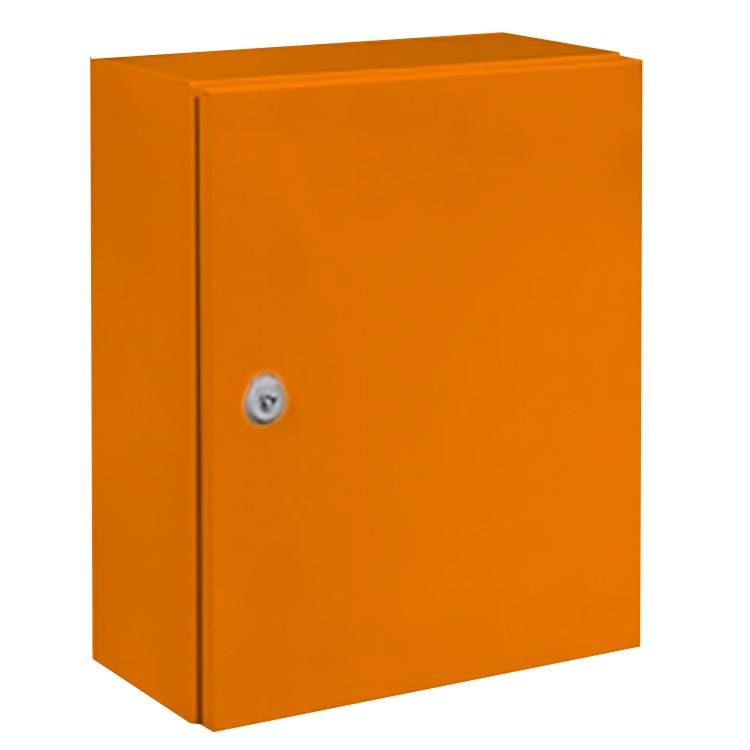

IDE MSB202015A Mild Steel Enclosure Cold Rolled Steel 200W 200H 150D RAL2008 Orange IP66

Product Code: MSB202015A

  • Wall-mounting cabinet with IP66 protection
  • Suitable for 1000 VAC, 1500 VDC applications
  • Durable cold rolled steel construction
  • Compact size: 200x200x150 mm
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to +60
Dimensions (mm) 200W x 200H x 150D
No. of Locks 1
Maximum Operational Voltage AC (V) 1000/1500
Certifications UL508A
Type of Door Single opaque door. Reversible
Sealing Gasket Injected polyurethane sealing gasket
Product Type Mild Steel Enclosure
Brand IDE
Ambient Temperature -25 to 60 deg C
Colour Orange RAL 2008
Degree of Protection IP66
Depth 150 mm
Door Type Single/Double Reversible
Gasket Material Polyurethane
Height 200 mm
Material Cold Rolled Steel
Number of Locks 1
Rated Operational Voltage 1000 VAC, 1500 VDC
Standards and Approvals IEC 62208, IEC 61439-1, UL 508A
Width 200 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
