Specifications

Ambient Temperature Range (°C)	-25 to +60
Dimensions (mm)	500W x 700H x 250D
No. of Locks	2
Maximum Operational Voltage AC (V)	1000/1500
No. of Hinges	2
Certifications	UL508A
Type of Door	Single opaque door. Reversible
Sealing Gasket	Injected polyurethane sealing gasket
Net Weight (kg)	23.4

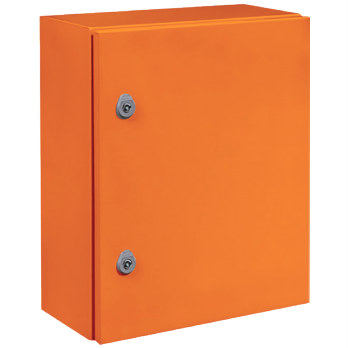

Product Type	Mild Steel Enclosure
Brand	IDE
Ambient Temperature	-25 to 60 deg C
Colour	Orange RAL 2008
Degree of Protection	IP66
Depth	250 mm
Door Profiles	2
Door Type	Single/Double Reversible
Gasket Material	Polyurethane
Height	700 mm
Material	Cold Rolled Steel
Net Weight	23.4 kg
Number of Hinges	2
Number of Locks	2
Rated Operational Voltage	1000 VAC, 1500 VDC
Standards and Approvals	IEC 62208, IEC 61439-56, UL 508A
Width	500 mm
