Product Code: TAC-W7-T-0

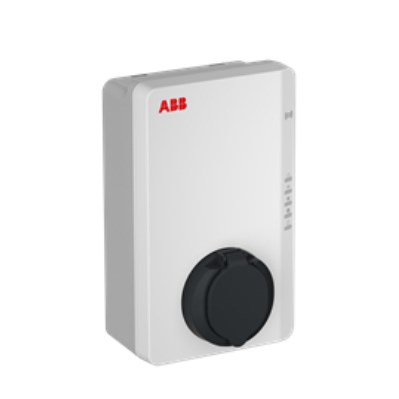

The Terra AC charger is a standard electric vehicle charger with a socket type 2. It has a voltage rating of 230VAC single phase, a rated power of 7.4kW, and a maximum current of 32A. The enclosure protection degree is IP54. Connectivity options include Wifi, Bluetooth, and Ethernet. The charger also features a built-in energy meter and integration with advanced energy systems for dynamic load management. Safety features include overcurrent protection, overvoltage protection, undervoltage protection, ground fault protection, surge protection, and protective earth continuity monitoring. Additionally, the charger is enabled for remote software updates.

Housing Material	Plastic
Brand	ABB
Mounting Type	Wall
Operational Temperature Range (°C)	-35...+50 °C
Storage Temperature (°C)	-50...+80 °C
Advanced Protection Systems	Overcurrent, Overvoltage, Ground fault, Integrated surge protection, Intergrated DC Earth Leakage Protection
Charging Standard	Mode 3 charging, level 2
Communication	OCPP 1.6 and RS485
Configuration	ABB web portal or App
Connection Type	Wifi, Ethernet (RJ45), Modbus RTU (RS485), Bluetooth
Connector Type	Socket, Type 2
Energy Metering	Revenue grade energy meter Class B
Maximum Current (A)	32
Network Configuration	TT, TN
No. of Phases	1
Operating Voltage AC (V)	230
Overvoltage Category	III
Rated Power (kW)	7.4
RFID Enabled	No
Software Update	OCPP 1.6, ABB web portal or App
Status Indication	5 LED's (Power / Connectivity / Authorization / Charging / Error)
Dimensions (mm)	400W x 200H
User Interface	Terra Config app, ChargerSync™ app or portal for setup
Weight (kg)	3.3 (net)
Degree of Protection	IP54
Standards	IEC/EN 61851-1, IEC/EN 62955
Certifications	CE, CB, MID, UL
