EV Charger Wall Boxes


Product Code: TAC-W7-G5-R-0

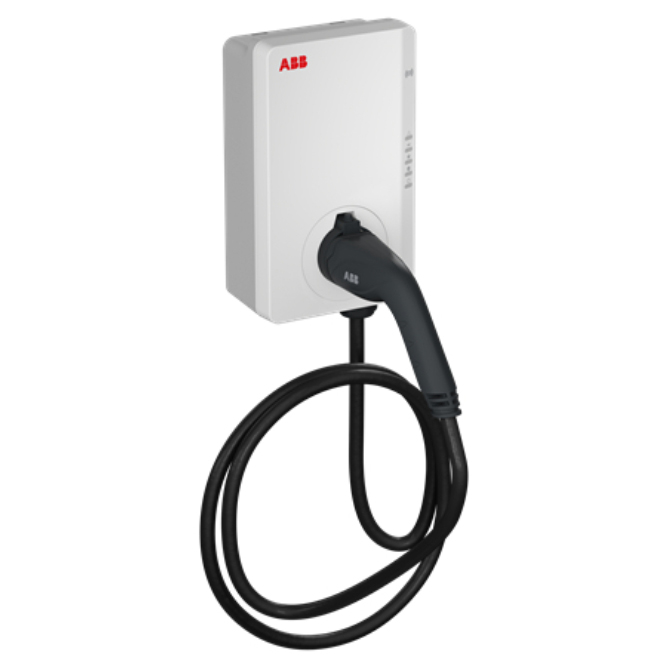

The Terra AC charger is designed specifically for electric vehicles. It features RFID technology and comes with a 5m type 2 cable. With a voltage rating of 230VAC single phase, it has a rated power of 7.4kW and a maximum current of 32A. The charger is housed in an enclosure with an IP54 protection degree, ensuring durability and resistance to dust and water ingress. Connectivity options include Wifi, Bluetooth, and Ethernet, allowing for easy integration into existing networks. The charger also includes a built-in energy meter and can be integrated with advanced energy systems for dynamic load management. Safety features are comprehensive, including protection against overcurrent, overvoltage, undervoltage, ground fault, surge protection, and protective earth continuity monitoring. Additionally, the charger is enabled for remote software updates, ensuring that it stays up-to-date with the latest features and improvements.

Technical Specifications

Brand ABB
Communication OCPP 1.6 and RS485
Configuration ABB web portal or App
Connection Type Wifi, Ethernet (RJ45), Modbus RTU (RS485), Bluetooth
Connector Type Cable 5m, Type 2
Degree of Protection IP54
Dimensions (mm) 450W x 350H
Housing Material Plastic
Maximum Current (A) 32
Mounting Type Wall
Overvoltage Category III
Weight (kg) 3.3 (net)
No. of Phases 1
Operating Voltage AC (V) 230
Operational Temperature Range (°C) -35...+50 °C
Advanced Protection Systems Overcurrent, Overvoltage, Ground fault, Integrated surge protection, Intergrated DC Earth Leakage Protection
Energy Metering Revenue grade energy meter Class B
RFID Enabled Yes
Software Update OCPP 1.6, ABB web portal or App
Standards IEC/EN 61851-1, IEC/EN 62957
Status Indication 5 LED's (Power / Connectivity / Authorization / Charging / Error)
Storage Temperature (°C) -50...+80 °C
User Authentification ABB RFID card or ChargerSync™ app and portal
User Interface Terra Config app, ChargerSync™ app or portal for setup
Certifications CE, CB, MID, UL
Network Configuration TT, TN
