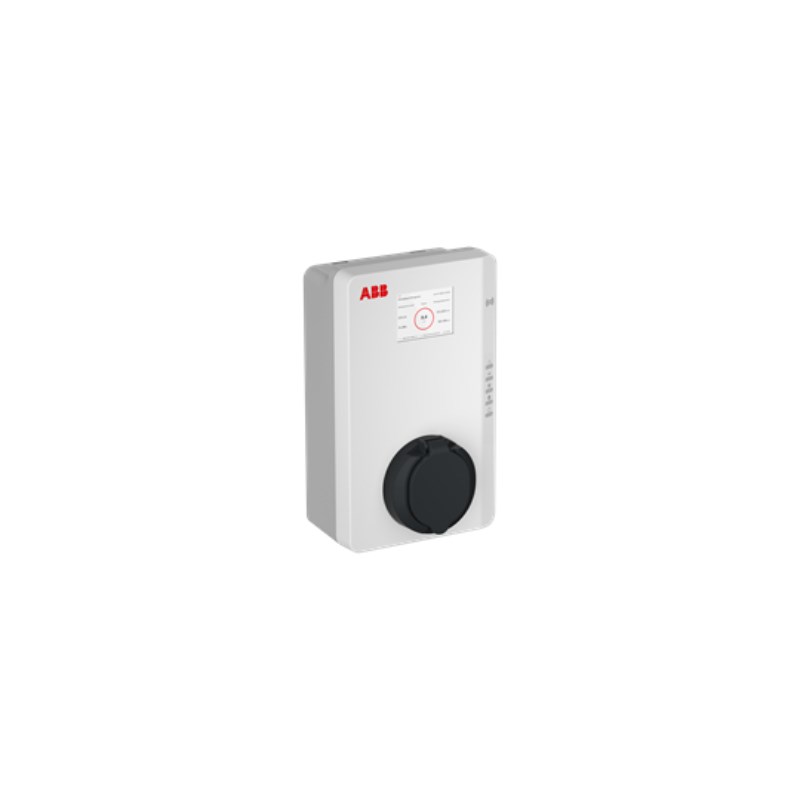

ABB TAC-W11-T-RD-MC-0 AC Charger Wall box 3 Ph 415VAC 11 kW RFID App Free VenDINg

Product Code: TAC-W11-T-RD-MC-0

  • Supports 16 A, 11 kW charging at 415 VAC
  • IP54-rated for dust and water protection
  • Connect via Wi-Fi, Ethernet, Bluetooth, Modbus or 4G
  • RFID, App & Free Vending authentication options
  • Durable plastic housing for wall mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Output Current (A) 16
No. of Phases 3
Operational Temperature Range (°C) -30 to +50
Rated Supply Voltage AC (V) 415
MID Certified Yes
Nominal Power (kW) 11
Product Type AC Charger Wall box
Brand ABB
Authentication Method RFID, App, Free Vending
Communication Wi-Fi, Bluetooth, 4G, Ethernet
Communication/Memory Interface Wi-Fi, Ethernet, Bluetooth, Modbus, 4G
Connector Type Socket, Type 2
Cross Section 6 sq-mm
Degree of Protection IP54
Energy Meter Type AC-MID
Housing Material Plastic
Mounting Type Wall
Overload Protection 20 A
Phase 3
Rated Current 16 A
Rated Frequency 50/60 Hz
Rated Power 11 kW
Rated Voltage 415 VAC
Width 195 mm

Description

Terra AC EV Charger wallbox 3 phase 415V rated peak power 11 kW, current 16A. Socket outlet, communication Interface wifi, bluetooth, 4G, ethernet. RFID, MID & display. Wall mounting.
