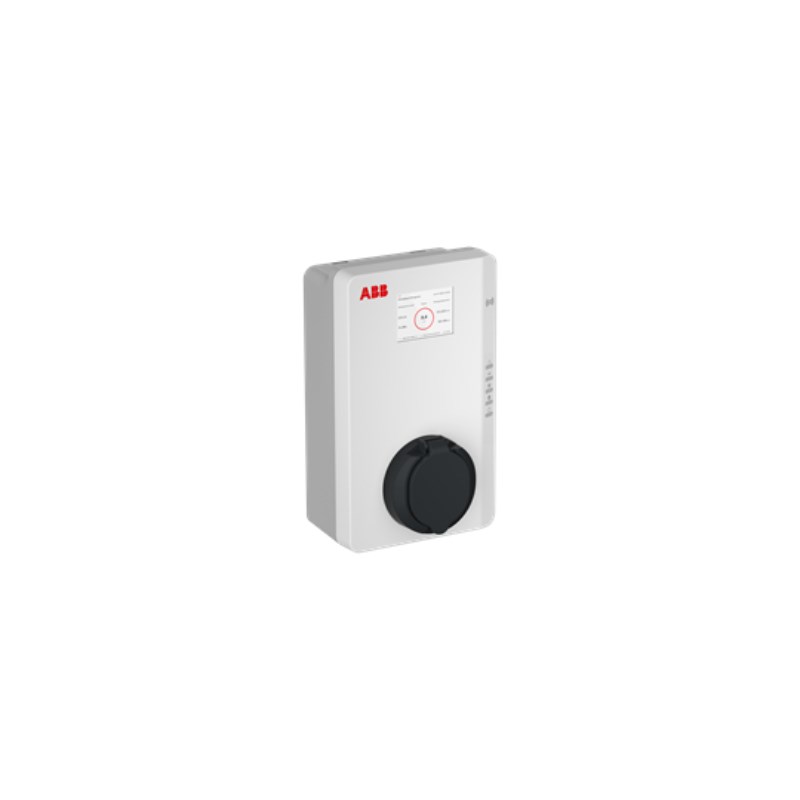

ABB TAC-W22-T-RD-MC-0 AC Charger Wall box 3 Ph 415VAC 22 kW RFID App Free VenDINg

Product Code: TAC-W22-T-RD-MC-0

  • Delivers up to 22 kW power
  • Supports Wi-Fi, Ethernet, Bluetooth, Modbus, 4G
  • IP54 rated for solid and water protection
  • RFID & App authentication options
  • Operates from -30 to 50°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Current (A) 32
No. of Phases 3
Operational Temperature Range (°C) -30 to +50
Rated Supply Voltage AC (V) 415
MID Certified Yes
Rated Power (kW) 22
Product Type AC Charger Wall box
Brand ABB
Authentication Method RFID, App, Free Vending
Communication Wi-Fi, Bluetooth, 4G, Daisy-chain ethernet
Communication/Memory Interface Wi-Fi, Ethernet, Bluetooth, Modbus, 4G
Connector Type Socket, Type 2
Cross Section 6 sq-mm
Degree of Protection IP54
Energy Meter Type AC-MID
Housing Material Plastic
Mounting Type Wall
Operational Temperature -30 to 50 deg C
Overload Protection 40 A
Phase 3
Rated Current 32 A
Rated Frequency 50/60 Hz
Rated Power 22 kW
Rated Voltage 415 VAC
Width 195 mm
