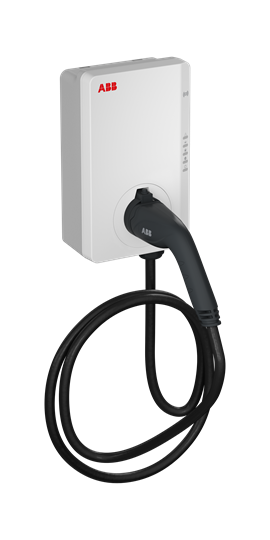

ABB EV CHARGER 3P 415V 22kW WIFI, BLUETOOTH, RS485, 4G,& RFID WITH 5m CABLE TAC-W22-G5-R-C-0

Product Code: TAC-W22-G5-R-C-0

Terra AC wallbox type 2, cable 5m, 3-phase/32A, with RFID and 4G.

Technical Specifications

Communication Protocols OCPP 1.6
Connection Configuration TT, TN
EV Connectors 1 x AC Type 2
Input Voltage (V) 380 - 420V AC 3-Phase
Overcurrent Protection 40A
Socket Outlet/Connector Type 1 x AC Type 2
Brand ABB
Ambient Temperature Range (°C) -30 to 50
Authentication Method RFID App Free Vending
Cable Length (m) 5
Communication Interface Wi-Fi Ethernet Bluetooth Modbus 4G
Degree of Protection IP54
Dimensions (mm) 195W x 110H x 320D
Housing Material Plastic
Impact Resistance Rating IK08
Input Current (A) 32A 3-Phase
Mounting Type Wall Mount
No. of Phases 3
Output Current (A) 32A AC 3-Phase
Output Power (kW) Nominal: 22kW
Output Voltage (V) 320 - 480V AC 3-Phase
Overvoltage Category III
Rated Frequency (Hz) 50/60
Standards and Approvals EN 61851-1 EN 61851-23 EN 61000-6-2 EN 61000-6-3 EN 301 908-2 IEC 60721-3-2: IE23 RoHS
Storage Temperature Range (°C) -50 to 80
Weight (kg) 5.3
