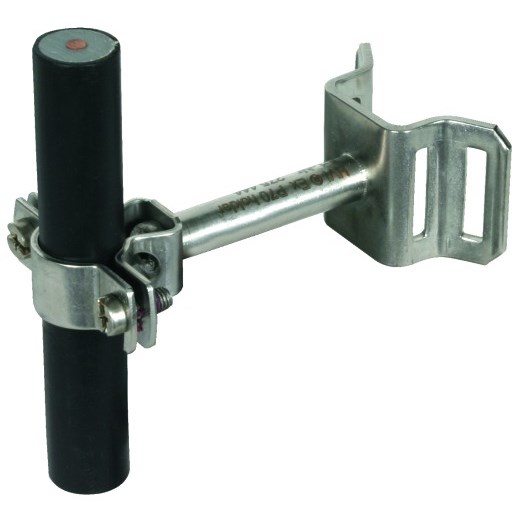

DEHN 275444 Conductor Holder M6 x 14mm Screw 6mm W 4mm D 12mm H M8 304 Stainless Steel

Product Code: 275444

  • M6 x 14 mm screw connection
  • Compact size: 6x12x4 mm
  • Made from 304 stainless steel
  • Complies with DIN IEC/TS 62561-8 standards
  • Compatible with HVI systems
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 6W x 12H x 4D
Clamping Range (mm) 50-300
Mounting Method Other
Rod Diameter (mm) 20
Holder Material Stainless steel 304 (V2A)
Saddle Material Stainless steel 304 (V2A)
Carrier Material Stainless steel 304 (V2A)
Fixing Screw Type M6 x 14mm
Suitable For HVI Conductor
Weight (kg) 0.158
Product Type Conductor Holder
Brand DEHN
Base Material Stainless steel 304 (V2A)
Connection Type M6 x 14 mm Screw
Depth 4 mm
Height 12 mm
Material 304 Stainless Steel
Mounting Type With screw clamp
Standards and Approvals DIN IEC/TS 62561-8, VDEV 0185-561-8
Suitable For Use With HVI
Thread Size M8
Weight 158 g
Width 6 mm
