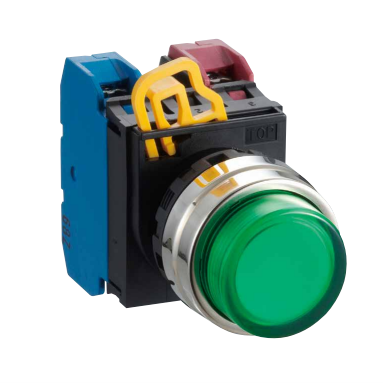

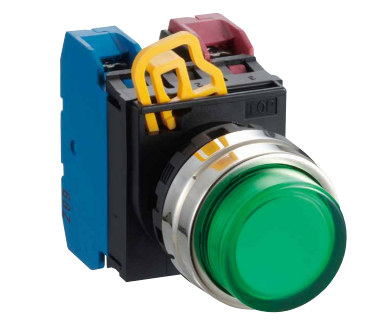

IDECYW1L-M2E01Q4G Illuminated Pushbutton 22mm Extended Momentary Green 24VAC/DC 1NC

Product Code: YW1L-M2E01Q4G

  • Illuminated pushbutton with built-in green LED
  • IP65 front protection for tough environments
  • Operates in -20 to 55°C temperature range
  • Screw terminals for secure connections
  • CE, UKCA, CCC certified and cULus listed
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 64.8D
Operating Voltage DC (V) 24
Operating Voltage AC (V) 24
No. of Normally-closed Contacts 1
Product Type Pushbutton
Brand IDEC
Series YW
Actuator Type Extended
Bezel Material Plastic
Colour Green
Contact Configuration 1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Depth 64.8 mm
Diameter 22 mm
Function Momentary
Height 41.4 mm
Humidity 45-85%
Illumination Illuminated
Insulation Resistance 100 MOhm
Lamp Colour Green
Lamp Type Built-in LED
Mechanical Life 0.25 million Operations Single Contact Block, 0.1 million Operations Double Contact Block
Model Momentary Extended
Operational Temperature -20 to 55 deg C
Rated Continuous Current 10 A
Rated Voltage 24 VAC/DC
Shock Resistance 10 g/ms
Standards and Approvals cULus listed, CE Marked, UKCA Certified, CCC Certified
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Vibration Resistance 5-55 Hz
Width 30 mm

Description

The IDEC YW1L-M2E01Q4G is an extended illuminated pushbutton designed for efficient use of space with its slim 10mm contact blocks. This green, 24V AC/DC pushbutton features a removable operator for quick maintenance and a lightweight design for easy handling. Its plastic bezel provides clear visibility while the separate contact block simplifies installation and removal processes. Ideal for streamlined operation in control panels, this 22mm pushbutton enhances functionality with its compact form factor.
