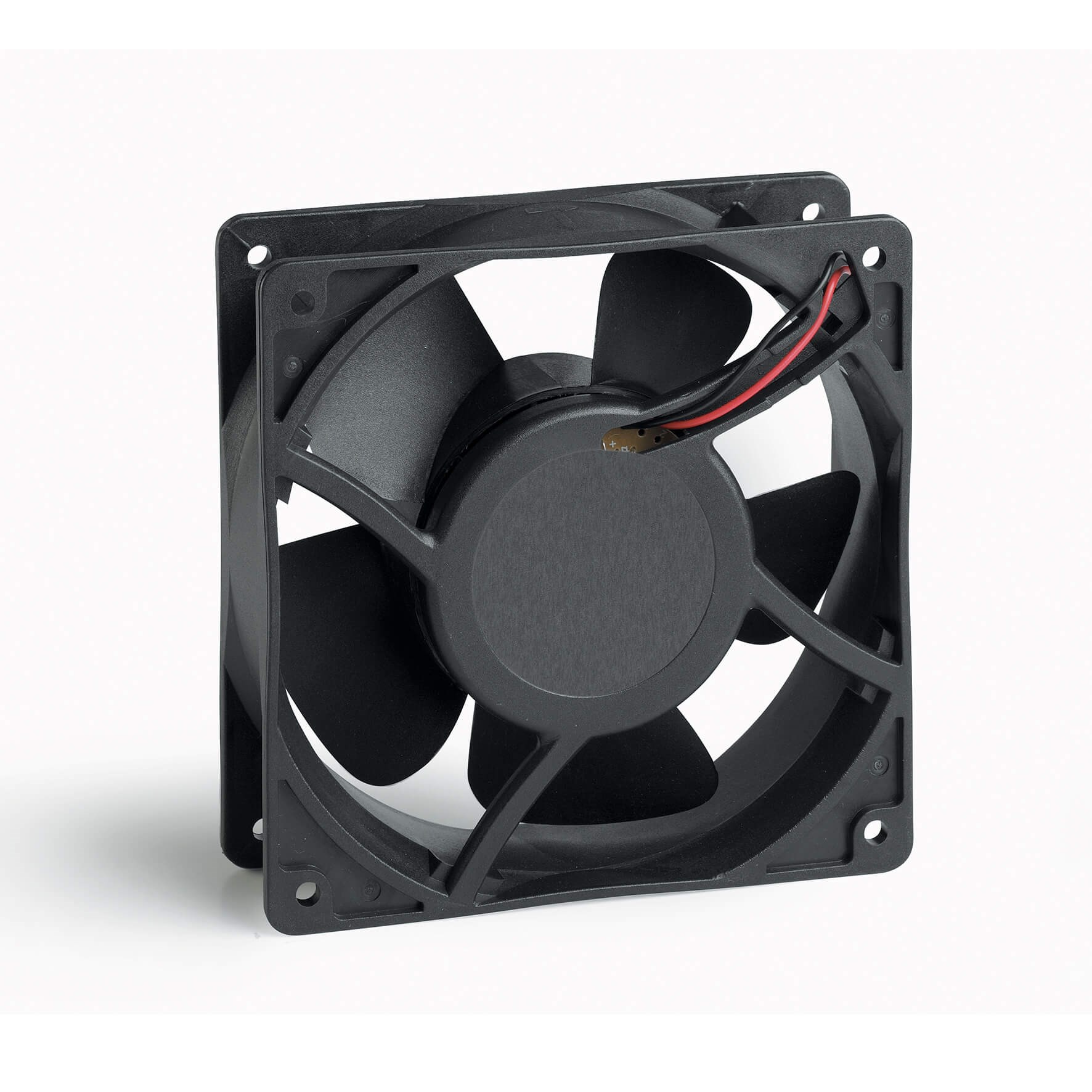

Fandis D08A04HWBAF0 Axial Frame Fan 63cu-m/hr 7VDC 12VDC IP68 80W 80H Plastic Black

Product Code: D08A04HWBAF0

  • Air flow capacity of 63 cu-m/hr
  • Operates at 7 VDC or 12 VDC
  • Low noise level at 35.8 dBA
  • Compact size: 80x80x25 mm
  • IP68 protection for harsh conditions
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 63
Operational Temperature Range (°C) -10 to +70
Rated Current (A) 0.18
Rated Power (W) 2.16
Rated Voltage DC (V) 12
Noise Level (dBA) 35.8
Dimensions (mm) 80H x 80W x 25D
Product Type Axial Frame Fan
Brand FANDIS
Air Flow 63 cu-m/hr
Cable Length 0.3 m
Colour Black
Degree of Protection IP68
Depth 25 mm
Height 80 mm
Housing Material Fiberglass Reinforced Plastic
Insulation Class A
Material Plastic
Noise Level 35.8 dBA
Operational Temperature -10 to 70 deg C
Rated Current 0.18 A
Rated Operational Voltage 7 VDC, 12 VDC
Rated Power 2.16 W
Rated Voltage 7 VDC, 12 VDC
Width 80 mm
