Specifications

Air Flow (m³/h)	57/61
Operational Temperature Range (°C)	-10 to +50
Rated Current (A)	0.125/0.110
Rated Frequency (Hz)	50/60
Rated Power (W)	20/19
Rated Voltage AC (V)	230
Dimensions (mm)	150H x 150W x 64D
Noise Level (dBA)	46/49

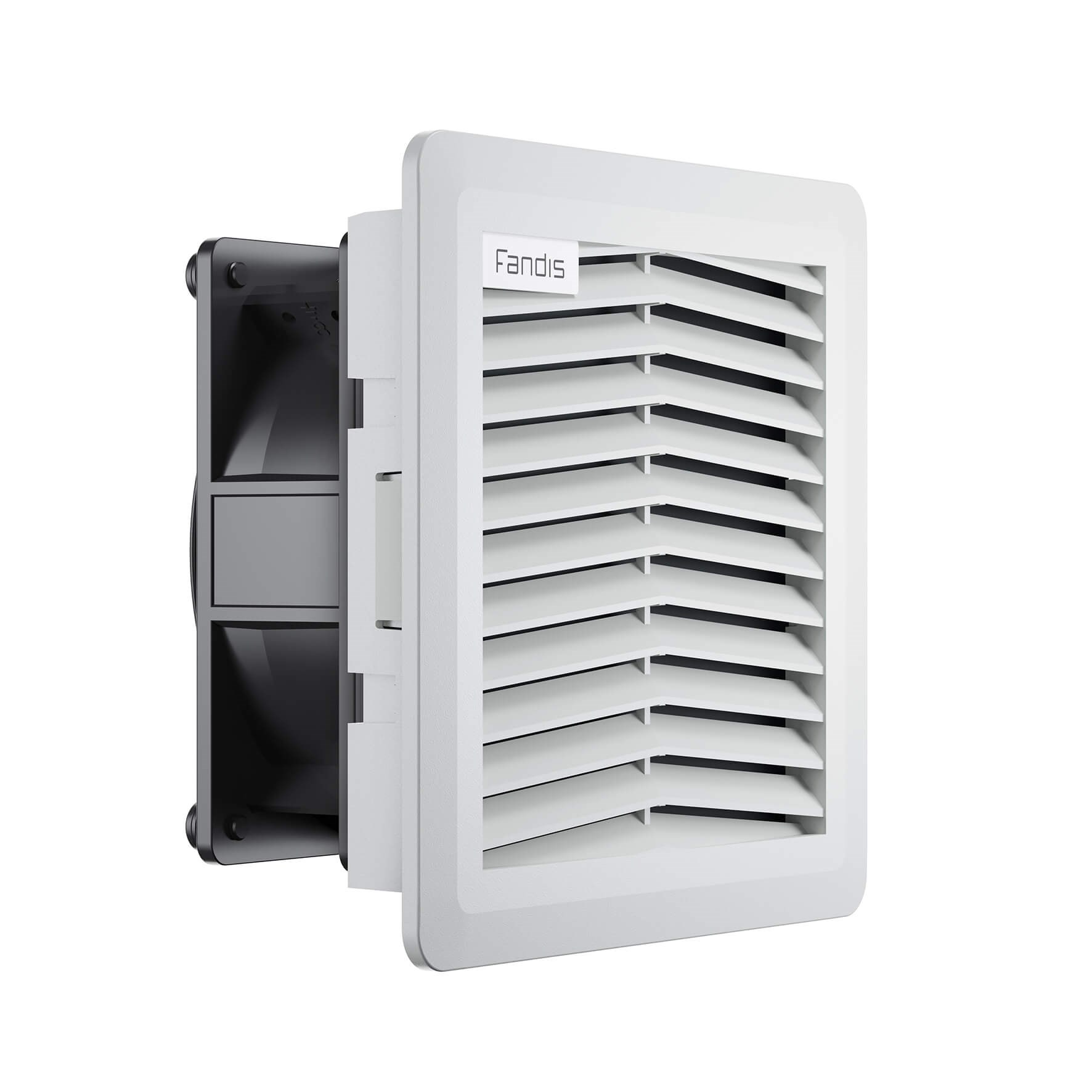

Product Type	Fan Filter
Brand	FANDIS
Air Flow	57 cu-m/h, 61 cu-m/h
Colour	Light Grey RAL 7035
Degree of Protection	IP54
Depth	64 mm
Height	150 mm
Housing Material	ABS/PC Alloy
Material	Synthetic Fiber
Noise Level	46 dBA, 49 dBA
Operational Temperature	-10 to 50 deg C
Rated Current	0.125 A, 0.11 A
Rated Frequency	50/60 Hz
Rated Power	20 W, 19 W
Rated Voltage	230 VAC, 24-250 VDC
Standards and Approvals	CE, cURus, UKCA
Width	150 mm
Wire Cross Section	18-12 AWG
