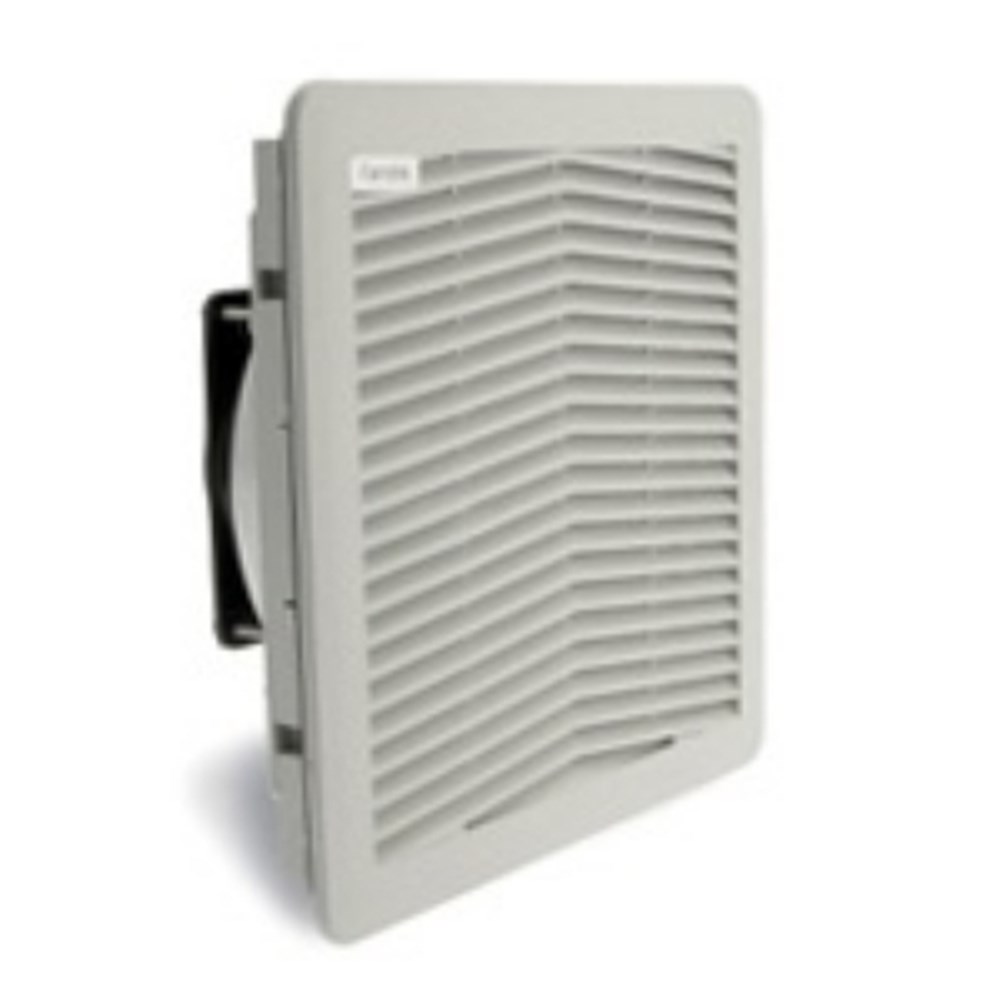

FANDIS FPF12KU230BE-110 FAN FILTER UNIT 230V AC GREY IP54

Product Code: FPF12KU230BE-110

This fan filter unit operates on 230V AC power with a frequency of 50/60Hz. It has an air flow rate of 57m³/h and a static pressure of 66Pa. The unit is coloured grey (RAL7035) and has an IP54 rating. The fan units can be reverse mounted for 'A' flow. The filter material is made of thermo-linked progressive structure synthetic fiber and has a permanent sealing gasket made of polyurethane foam. It can operate in temperatures ranging from -10°C to 50°C. The dimensions of the unit are 150Wx150Hx64Dmm.

Technical Specifications

Brand FANDIS
Air Flow (m³/h) 57
Colour Grey, RAL 7035
Degree of Protection IP54
Dimensions (mm) 150W x 150H x 64D
Material ABS/PC Alloy
