Specifications

Air Flow (m³/h)	110/120
Dimensions (mm)	204H x 204W x 90D
Operational Temperature Range (°C)	-10 to +50
Rated Current (A)	0.125/0.110
Rated Frequency (Hz)	50/60
Rated Power (W)	20/19
Rated Voltage AC (V)	230
Noise Level (dBA)	46/50

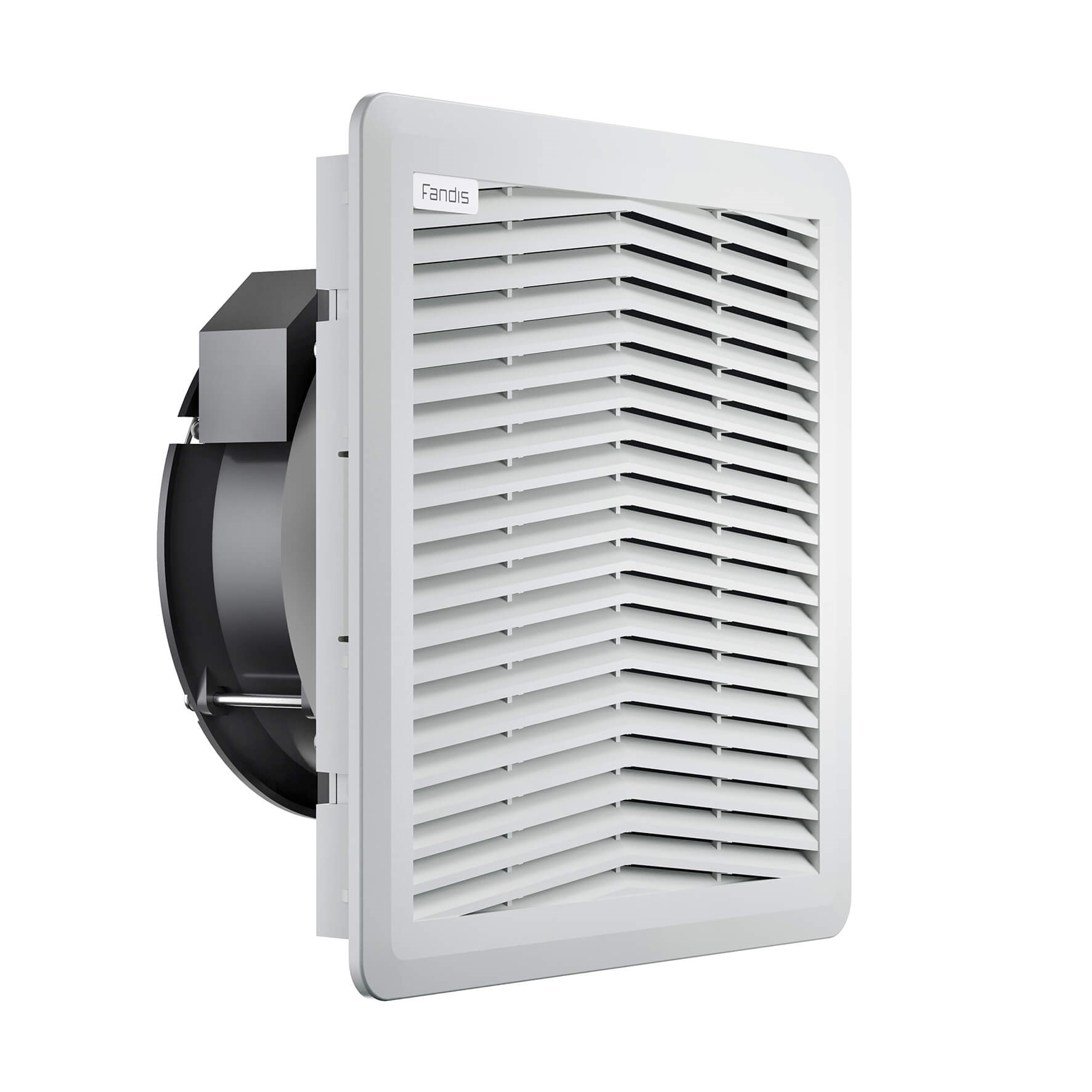

Product Type	Fan Filter
Brand	FANDIS
Air Flow	110 cu-m/h, 120 cu-m/h
Colour	Light Grey RAL 7035
Degree of Protection	IP54
Depth	90 mm
Height	204 mm
Housing Material	ABS/PC Alloy
Material	Synthetic Fiber
Noise Level	46 dBA, 50 dBA
Operational Temperature	-10 to 50 deg C
Rated Current	0.125 A, 0.11 A
Rated Frequency	50/60 Hz
Rated Power	20 W, 19 W
Rated Voltage	230 VAC, 24-250 VDC
Standards and Approvals	CE, cURus, UKCA
Width	204 mm
Wire Cross Section	18-12 AWG
