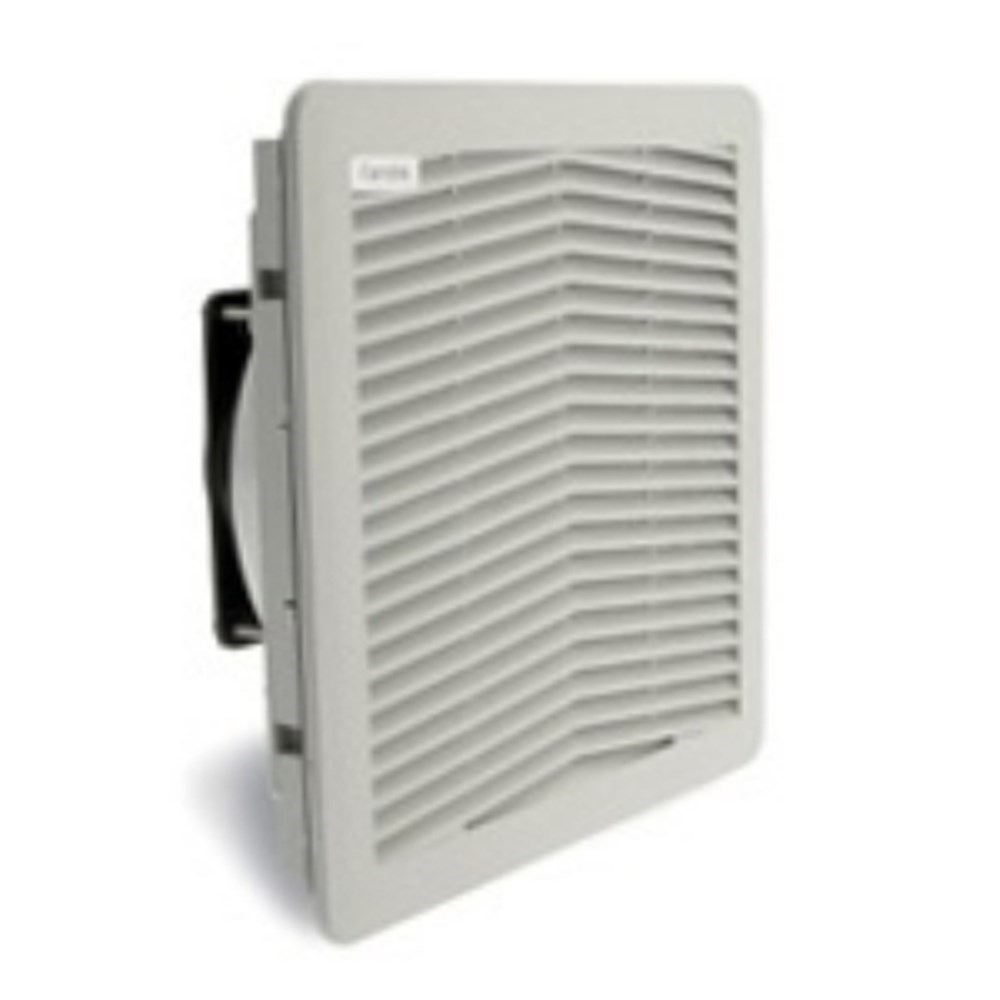

FANDIS FPF15KGU230BE120 FAN FILTER UNIT 230V AC GREY IP54

Product Code: FPF15KGU230BE120

This fan filter unit operates on 230V AC with a frequency of 50/60Hz. It has a B air flow rate of 360m³/h and a static pressure of 160Pa. The unit is coloured grey (RAL7035) and has an IP54 rating. The fan units can be reverse mounted for 'A' flow. The filter material is made of thermo-linked progressive structure synthetic fiber and has a permanent sealing gasket made of polyurethane foam. It can operate in temperatures ranging from -10°C to 50°C. The dimensions of the unit are 250Wx250Hx117Dmm.

Technical Specifications

Brand FANDIS
Air Flow (m³/h) 360
Colour Grey, RAL 7035
Degree of Protection IP54
Dimensions (mm) 250W x 250H x 117D
Material ABS/PC Alloy
