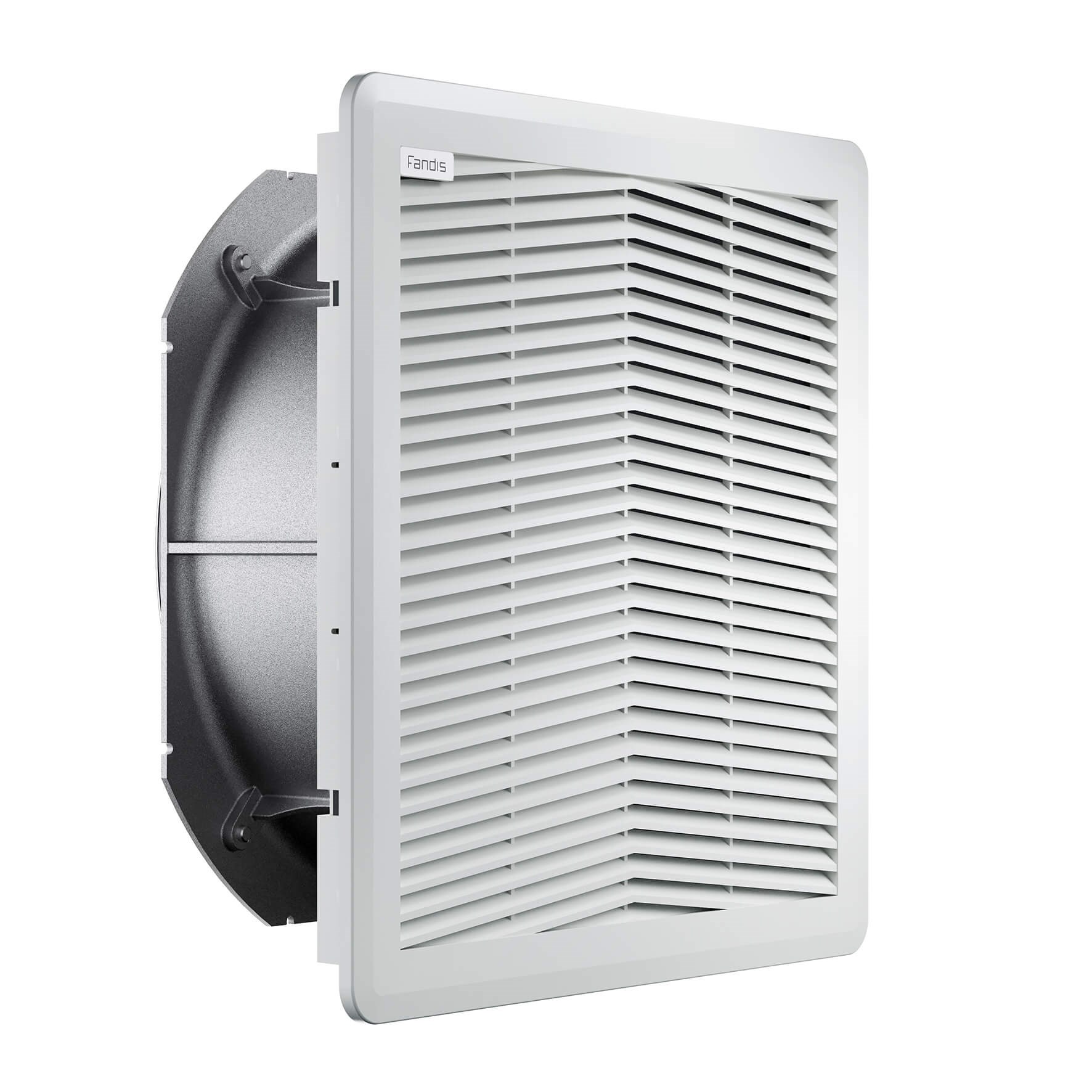

Fandis FPF20KGU230BR110 Fan Filter 650cu-m/h 730cu-m/h 230VAC 24 to 250VDC IP54 325W 325H ABS/PC Alloy

Product Code: FPF20KGU230BR110

  • Air flow options: 650 or 730 cu-m/h
  • Power usage: 106W or 147W
  • Voltage range: 230VAC, 24-250VDC
  • Protection rating: IP54
  • Compact size: 325x325x142 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 650/730
Dimensions (mm) 325H x 325W x 142D
Operational Temperature Range (°C) -10 to +50
Rated Current (A) 0.460/0.64
Rated Frequency (Hz) 50/60
Rated Power (W) 106/147
Rated Voltage AC (V) 230
Noise Level (dBA) 74.8/79
Product Type Fan Filter
Brand FANDIS
Air Flow 650 cu-m/h, 730 cu-m/h
Colour Light Grey RAL 7035
Degree of Protection IP54
Depth 142 mm
Height 325 mm
Housing Material ABS/PC Alloy
Material ABS, PC Alloy
Noise Level 74.8 dBA, 79 dBA
Operational Temperature -10 to 50 deg C
Rated Current 0.46 A, 0.64 A
Rated Frequency 50/60 Hz
Rated Power 106 W, 147 W
Rated Voltage 230 VAC, 24-250 VDC
Width 325 mm
