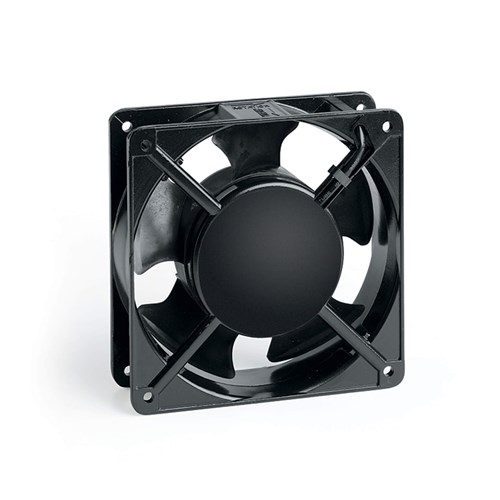

Fandis A13B23HTBF00 Axial Frame Fan 180cu-m/h 204cu-m/h 230VAC IP44 127W 127H Die-Cast Aluminum Black

Product Code: A13B23HTBF00

  • Air flow options: 180 or 204 cu-m/h
  • Power consumption: 15 or 17 W
  • IP44 rated for dust and water protection
  • Durable die-cast aluminium construction
  • Compact size: 127x127x38 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Axial Frame Fan
Brand FANDIS
Air Flow 180 cu-m/h, 204 cu-m/h
Colour Black
Degree of Protection IP44
Depth 38 mm
Height 127 mm
Housing Material Die-Casting Aluminium
Insulation Class B
Material Die-Cast Aluminium
Noise Level 46 dBA, 50 dBA
Operational Temperature -40 to 70 deg C
Rated Current 0.1 A, 0.09 A
Rated Frequency 50/60 Hz
Rated Power 17 W, 15 W
Rated Voltage 230 VAC
Width 127 mm

Description

<p>When selecting a fan for industrial or commercial applications, balancing performance with reliability is crucial. This fan offers a robust solution, delivering effective air movement and durability in demanding environments.</p><p>With an air flow capacity of 180 to 204 cubic meters per hour, this fan efficiently circulates air to meet various ventilation requirements. Its dual-rated power options of 17W and 15W provide flexibility depending on the specific application needs. Operating at a rated voltage of 230 VAC and supporting both 50 and 60 Hz frequencies, it seamlessly integrates into different electrical systems.</p><p>The fan&amp;#39;s design prioritizes resilience with its die-cast aluminum construction, ensuring long-term durability even under challenging conditions. Its IP44 degree of protection signifies resistance against solid objects larger than 1mm and splashes of water from any direction—ideal for industrial settings where exposure to dust or moisture is possible.</p><p>Measuring at a compact size of 127 mm in width and height with a depth of just 38 mm, this black-colored unit fits easily into tight spaces without compromising on performance. Despite its powerful operation, the noise level remains manageable between 46 dBA and 50 dBA, allowing it to function effectively without contributing significantly to ambient noise levels.</p><p>Designed for versatility, this fan operates efficiently across a wide temperature range from -40&amp;#176;C to +70&amp;#176;C. Whether it&amp;#39;s used in cold storage facilities or hot manufacturing plants, it maintains optimal performance throughout varied environmental conditions. Additionally, its Insulation Class B rating indicates good thermal endurance suitable for most industrial applications.</p><p>In summary, if you&amp;#39;re seeking a reliable ventilation solution that combines efficiency with durability while offering flexibility in installation across diverse settings, this fan stands as an excellent choice within its category.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
