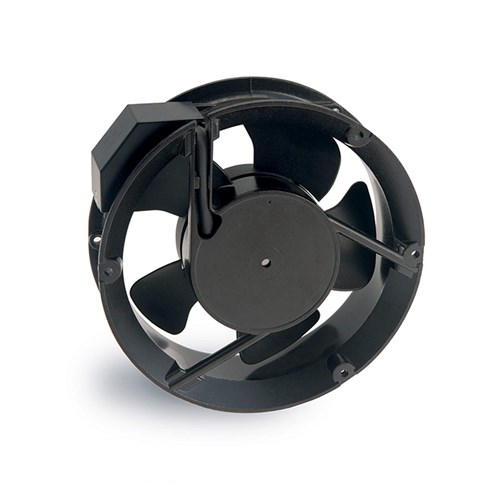

Fandis C17B23HTBF00 Axial Frame Fan 300cu-m/h 360cu-m/h 230VAC IP44 150W 172H Die-Cast Aluminum Black

Product Code: C17B23HTBF00

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Axial Frame Fan
Brand FANDIS
Air Flow 300 cu-m/h, 360 cu-m/h
Colour Black
Degree of Protection IP44
Depth 38 mm
Height 172 mm
Housing Material Die-Casting Aluminium
Insulation Class B
Material Die-Cast Aluminium
Noise Level 54 dBA, 58 dBA
Operational Temperature -40 to 70 deg C
Rated Current 0.11 A, 0.11 A
Rated Frequency 50/60 Hz
Rated Power 27 W, 26 W
Rated Voltage 230 VAC
Width 150 mm
