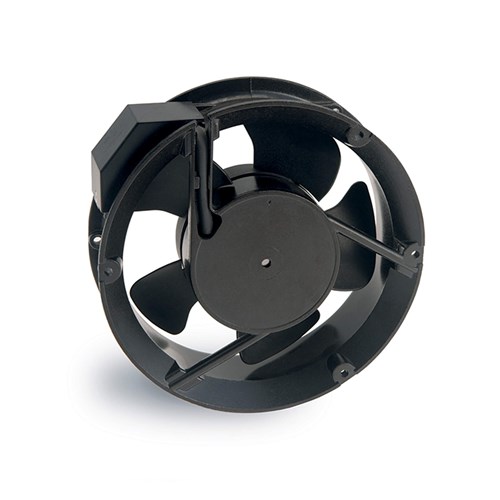

Fandis C18C23HTBF00 Axial Frame Fan 348cu-m/h 384cu-m/h 230VAC IP44 172W 172H Die-Cast Aluminum Black

Product Code: C18C23HTBF00

  • Air flow up to 384 cu-m/h
  • Energy-efficient at 29 W power
  • Durable die-cast aluminium build
  • Operates in -40 to 70°C range
  • Quiet operation at 50 dBA noise level
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Axial Frame Fan
Brand FANDIS
Air Flow 348 cu-m/h, 384 cu-m/h
Colour Black
Degree of Protection IP44
Depth 51 mm
Height 172 mm
Housing Material Die-Casting Aluminium
Insulation Class B
Material Die-Cast Aluminium
Noise Level 50 dBA, 55 dBA
Operational Temperature -40 to 70 deg C
Rated Current 0.12 A, 0.12 A
Rated Frequency 50/60 Hz
Rated Power 29 W, 29 W
Rated Voltage 230 VAC
Width 172 mm

Description

<p>When selecting a fan for industrial or commercial applications, it&amp;#39;s crucial to consider the technical specifications that ensure reliability and efficiency. This particular fan model offers a well-rounded set of features tailored to meet such demands.</p><p>Firstly, its air flow capacity ranges between 348 and 384 cubic meters per hour, providing robust ventilation suitable for various environments. With a rated power of 29 watts, this fan strikes an optimal balance between performance and energy consumption. Operating at a voltage of 230 VAC with frequencies of either 50 or 60 Hz, it seamlessly integrates into standard electrical systems without the need for additional modifications.</p><p>The fan&amp;#39;s design emphasizes durability and protection. It boasts an IP44 degree of protection, safeguarding against solid objects over 1mm in size and splashes of water from any direction—ideal for challenging operational settings. Constructed from die-cast aluminium, it combines strength with lightweight properties, ensuring longevity while maintaining ease of installation.</p><p>In terms of dimensions, the fan measures a compact yet effective width and height of 172 mm each with a depth of just 51 mm. This makes it versatile enough to fit into spaces where larger fans might not be feasible without compromising on performance.</p><p>Noise levels are always a consideration in industrial settings where multiple devices operate simultaneously. This model operates within reasonable noise parameters at levels ranging from 50 to 55 dBA—comparable to moderate rainfall—minimizing disruption while maintaining functionality.</p><p>The operational temperature range is another highlight; capable of functioning efficiently from as low as -40&amp;#176;C up to +70&amp;#176;C. This wide temperature tolerance ensures that the fan performs reliably across diverse climates and conditions without risk of overheating or freezing failures.</p><p>Additionally, the insulation class B rating provides reassurance regarding thermal endurance under normal operating conditions—a critical factor when considering long-term usage in demanding environments.</p><p>Finished in black, this fan presents a sleek appearance that complements various industrial aesthetics while also being practical in concealing dust or wear marks commonly encountered over time.</p><p>Overall, this product embodies a blend of practicality and efficiency designed specifically for those who prioritize technical reliability over frills. It&amp;#39;s crafted with materials known for their resilience and structured to deliver consistent airflow under varying circumstances—a dependable choice for professionals seeking quality ventilation solutions tailored for rigorous use cases.</p>
