Specifications

Dimensions (mm)	M12 x 45
Suitable For	Earthing
Weight (kg)	0.28
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	150
Weight (g)	278
Maximum Output Short-circuit Current (A)	42k (0.5s)
Mounting Method	With thread bolt
Outer Diameter (mm)	25
Reference No.	755245

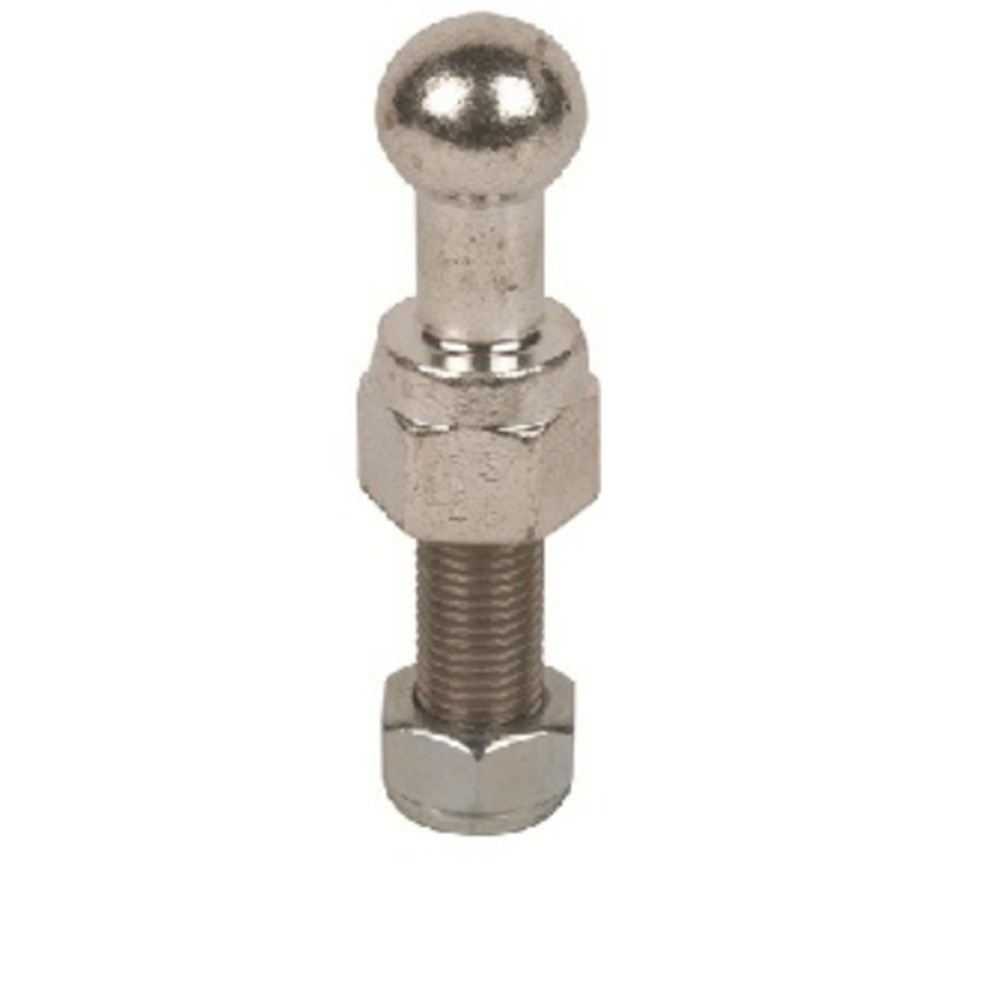

Product Type	Fixed Ball Point
Brand	DEHN
Connection Type	25 mm Fixed Ball Point
Cross Section	150 sq-mm
Material	Electrolytic Copper, Tin Coated Copper
Mounting Type	Thread Bolt
Rated Current	42000 A, 29600 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
Suitable For Use With	Earthing Rods
Thread Size	M12 x 45 mm
Tightening Torque	50-65 N-m
Weight	278 g
