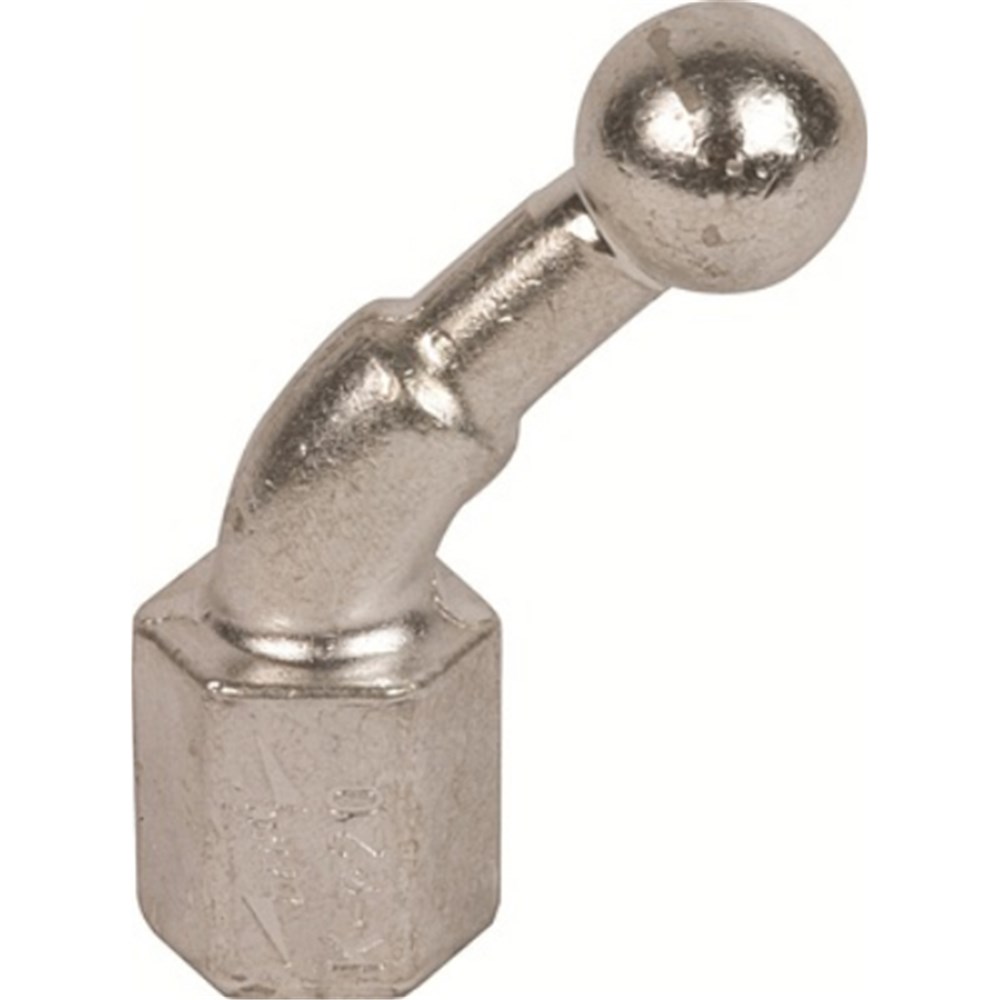

DEHN KFP25W45M12 Angled Fixed Ball Point With M12 Female Thread 26500A 18700A 25mm Internal Thread M12

Product Code: KFP25W45M12

  • Rated for 26500 A and 18700 A currents
  • 25 mm fixed ball point connection
  • Internal thread mounting with M12 size
  • Made from electrolytic, tin-coated copper
  • Complies with EN/IEC 61230 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) M12
Suitable For Earthing
Weight (kg) 0.36
Type Short-Circuiting Devices
Wire Cross Section (mm²) 95
Weight (g) 357.2
Maximum Output Short-circuit Current (A) 26.5k (0.5s)
Mounting Method With internal thread
Outer Diameter (mm) 25
Reference No. 756200
Product Type Angled Fixed Ball Point With M12 Female Thread
Brand DEHN
Angle 45 deg
Connection Type 25 mm Fixed Ball Point
Cross Section 95 sq-mm
Material Electrolytic Copper, Tin Coated Copper
Mounting Type Internal Thread
Rated Current 26500 A, 18700 A
Standards and Approvals EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
Suitable For Use With Earthing Rods
Thread Size M12
Weight 357 g
