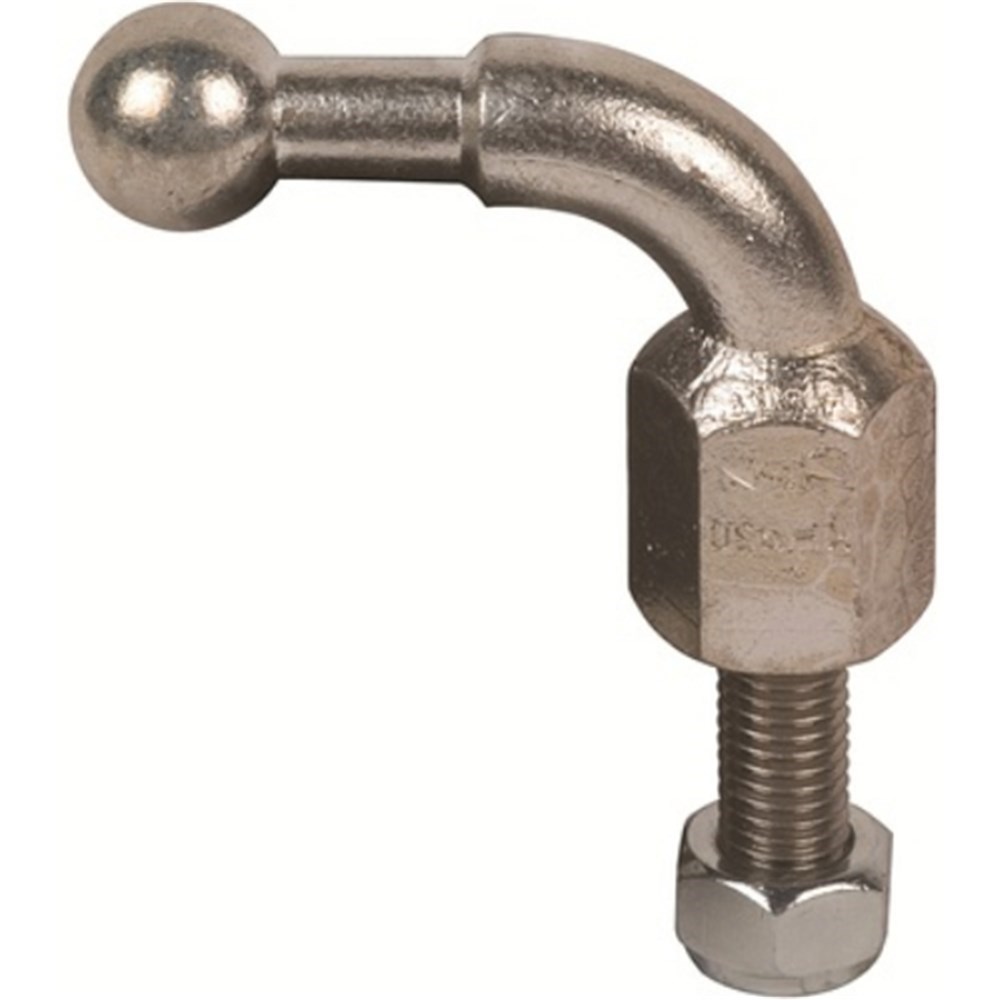

When it comes to ensuring safety and reliability in electrical systems, the selection of appropriate conductor holders is paramount. This particular Conductor Holder stands out as a robust choice for industrial and commercial applications. Designed with precision, it supports rated currents of 26,500 A and 18,700 A, making it suitable for demanding environments where high current capacity is essential.
The connection type features a 25 mm fixed ball point which ensures secure connectivity and stability during operation. Installation is straightforward thanks to its thread bolt mounting type, providing ease of use while maintaining a firm grip on the conductor.
This product adheres to stringent standards and approvals, including EN/IEC 61230 (DIN VDE 0683-100) and DIN 43673-1. These certifications attest to its quality and compliance with international safety norms, offering peace of mind that this conductor holder meets rigorous industry requirements.
Weighing in at just 454 grams, it's lightweight yet crafted from durable materials such as electrolytic copper with a tin-coated finish. This combination not only enhances conductivity but also offers corrosion resistance—ideal for long-term usage in various environmental conditions.
Designed specifically for compatibility with earthing rods, this conductor holder facilitates effective grounding solutions—a critical aspect in protecting electrical systems from faults or overloads. The tightening torque range between 50-65 N-m allows for precise adjustments ensuring optimal performance without compromising integrity.
With a cross-section of 95 sq-mm and an angle set at 90 degrees, this component is engineered to fit seamlessly into existing setups while providing flexibility in design layouts. The thread size measures M12 x 45 mm further indicating its adaptability across different installations.
In summary, this Conductor Holder combines durability with efficiency by leveraging high-quality materials and adhering to recognized standards. Its thoughtful design caters to professionals seeking reliable components that deliver consistent performance under demanding conditions.
