Specifications

Dimensions (mm)	M16 x 45
Suitable For	Earthing
Weight (kg)	0.47
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	95
Weight (g)	469.8
Maximum Output Short-circuit Current (A)	26.5k (0.5s)
Mounting Method	With thread bolt
Outer Diameter (mm)	25
Reference No.	756645

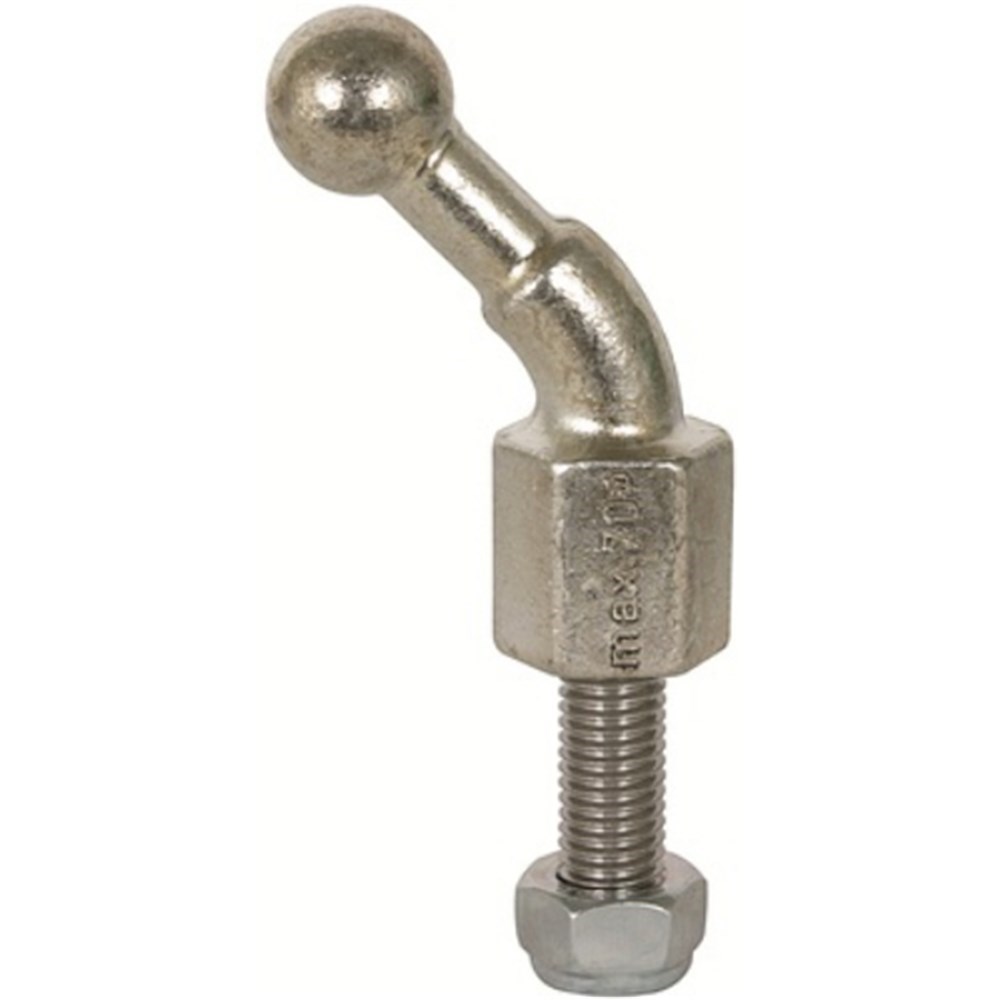

Product Type	Angle Fixed Ball Point With Threaded Bolt and Nut
Brand	DEHN
Angle	45 deg
Connection Type	25 mm Fixed Ball Point
Cross Section	95 sq-mm
Material	Electrolytic Copper, Tin Coated Copper
Mounting Type	Thread Bolt
Rated Current	26500 A, 18700 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
Suitable For Use With	Earthing Rods
Thread Size	M16 x 45 mm
Tightening Torque	100-110 N-m
Weight	470 g
