ABB IPSY2A22 Foot Switch

Product Code: IPSY2A22

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -10 ... +70 (Operation)
Conventional Free-Air Thermal Current - Ith (A) 10 (acc. to IEC 60947-5-1, T = 40 °C)
Rated Operational Current DC-13 24V (A) 6
No. of Auxiliary Contacts 2NC + 2NO
Net Weight (kg) 1.2
Rated Frequency (Hz) 50 / 60 (Supply Circuit)
Rated Insulation Voltage (V) 690 (acc. to IEC 60947-5-1 and VDE 0110 (Gr. C))
Product Type Foot Switch
Brand ABB
Degree of Protection IP65

Description

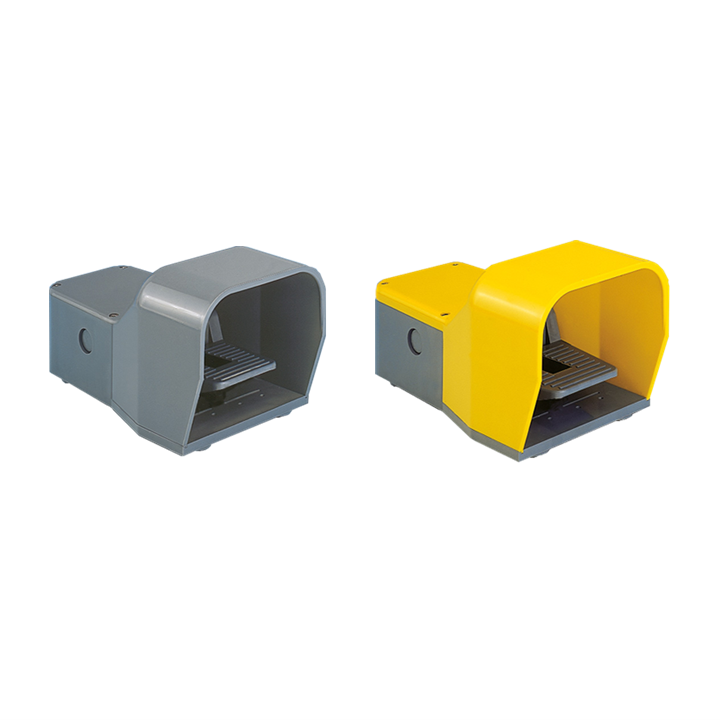

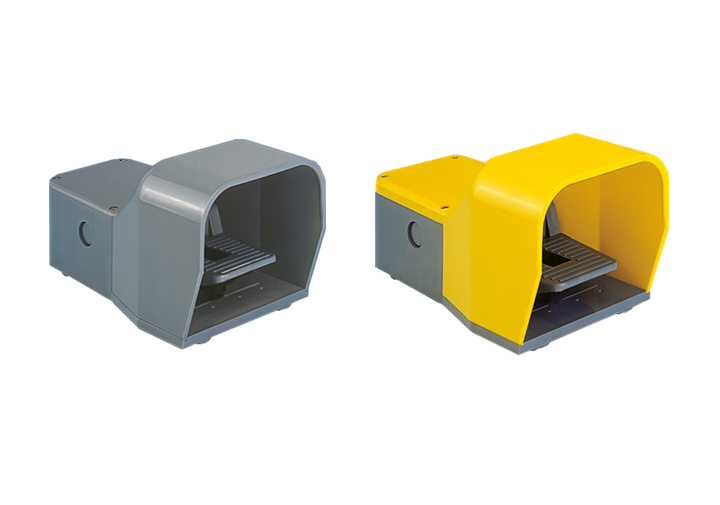

IPSY2A22 is a Covered Foot Switch with grey base and yellow ABS cover. The pedal movement is maintained and locked in neutral (up) position and the switch is equipped with 1 Pg16 cable entry and 2 N.O + 2 N.C snap action (Za type) contacts.
