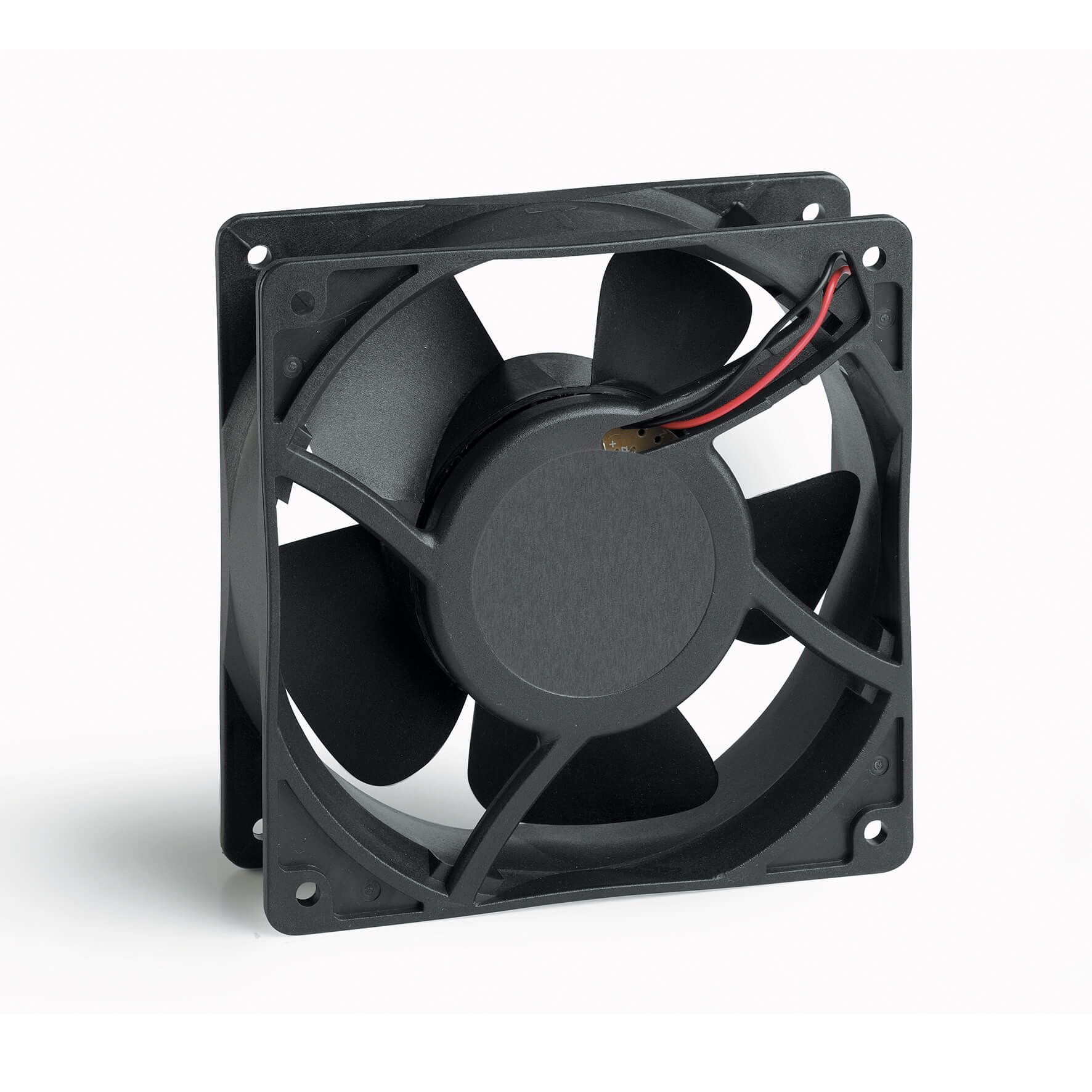

Fandis D12A05HWBZ00 Axial Frame Fan 134cu-m/h 7VDC 24VDC IP20 120W 120H Plastic Black

Product Code: D12A05HWBZ00

  • Airflow capacity of 134 cu-m/h
  • Operates at 7 VDC or 24 VDC
  • Low power consumption of 4.56 W
  • Compact size: 120x120x25.5 mm
  • Quiet operation at 39.3 dBA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Air Flow (m³/h) 134
Cable Length (m) 0.3
Dimensions (mm) 120H x 120W x 25.5D
Operational Temperature Range (°C) -10 to +70
Rated Current (A) 0.19
Rated Power (W) 4.56
Rated Voltage DC (V) 24
Noise Level (dBA) 39.3
Product Type Axial Frame Fan
Brand FANDIS
Air Flow 134 cu-m/h
Cable Length 0.3 m
Colour Black
Degree of Protection IP20
Depth 25.5 mm
Height 120 mm
Housing Material Plastic UL94-V0
Insulation Class A
Material Plastic
Noise Level 39.3 dBA
Operational Temperature -10 to 70 deg C
Rated Current 0.19 A
Rated Operational Voltage 7 VDC, 24 VDC
Rated Power 4.56 W
Rated Voltage 7 VDC, 24 VDC
Width 120 mm
