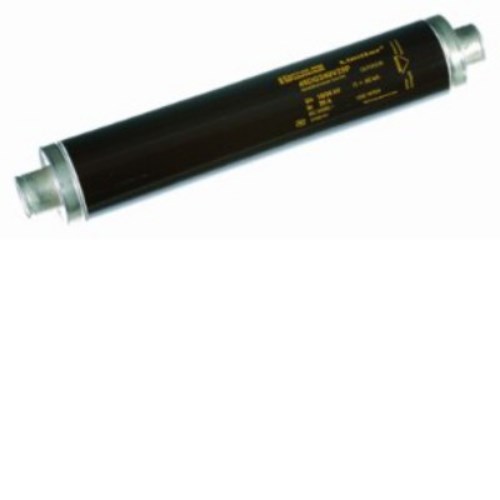

Mersen 45DB240V20P HV Fuse-Link 20A 24 kV 56mm Dia x 442mm L 63kA Medium Striker Striker 80N

Product Code: 45DB240V20P

  • Rated for 20 A and 24 kV applications
  • High breaking capacity of 63 kA
  • Compact size: 56 mm Dia x 442 mm L
  • Durable ceramic body with silver-plated copper terminals
  • Features a striker indicator with 80N force
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Indication Striker 80N
Minimum Breaking Capacity (A) 76
Rated Current (A) 20
Rated Voltage AC (V) 24000
Weight (kg) 2.3
Breaking Capacity AC (kA) 63
Fuse Size (mm) 56D x 442L
Power Dissipation at In (W) 76
Clearing I²t at Rated Voltage (kA²s) 4
Product Type HV Fuse-Link
Brand MERSEN
Body Material Ceramic
Body Style Cylindrical
Breaking Capacity 63 kA
Connection/Terminal Material Silver Plated Copper
Contact Material Silver-Plated Copper
Fuse Size 56 mm Dia x 442 mm L
Indicators Striker 80N
Insulation Material Ceramic
Material Ceramic
Mounting Type Clip
Power Dissipation 76 W
Rated Current 20 A
Rated Voltage 24 kV
Standards and Approvals IEC 60282-1, VDE 0670 part 4, DIN 43625
Terminal Type Cylindrical
Weight 5.071 lb
