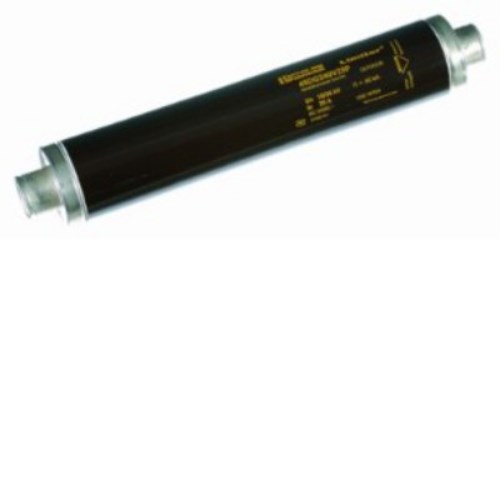

When it comes to ensuring the safety and efficiency of electrical systems, selecting the right high-voltage (HV) fuse link is crucial. This HV Fuse Link, designed for industrial and commercial applications, offers reliable performance with a focus on durability and technical precision.
With a rated current of 40 A and a rated voltage of 24 kV, this fuse link is engineered to handle significant electrical loads typical in demanding environments. Its breaking capacity of 63 kA ensures that it can safely interrupt fault currents without compromising system integrity.
The construction of this fuse link emphasizes both resilience and functionality. The body material is crafted from ceramic, known for its excellent insulating properties and ability to withstand high temperatures. Complementing this robust design are terminals made from silver-plated copper, offering superior conductivity while resisting corrosion over time.
Installation is straightforward with its clip mounting type, providing ease of use while maintaining secure connections in various setups. The cylindrical terminal type further simplifies integration into existing systems without requiring specialized connectors or tools.
For those monitoring system status at a glance, the built-in striker indicator rated at 80N provides clear visual feedback when the fuse has operated. This feature enhances operational safety by allowing quick identification of blown fuses during maintenance checks.
In terms of physical dimensions, this HV Fuse Link measures 56 mm in diameter and 442 mm in length—dimensions that fit standard equipment enclosures while ensuring optimal space utilization. Despite its size, it maintains a manageable weight of just over 5 pounds (5.071 lb), facilitating handling during installation or replacement procedures.
Power dissipation stands at 114 W, indicating efficient energy management within the system—an important factor for minimizing heat generation and improving overall lifespan under continuous operation conditions.
Whether you're upgrading an existing setup or designing new installations from scratch, this HV Fuse Link delivers dependable protection tailored for high-stakes environments where performance cannot be compromised.
