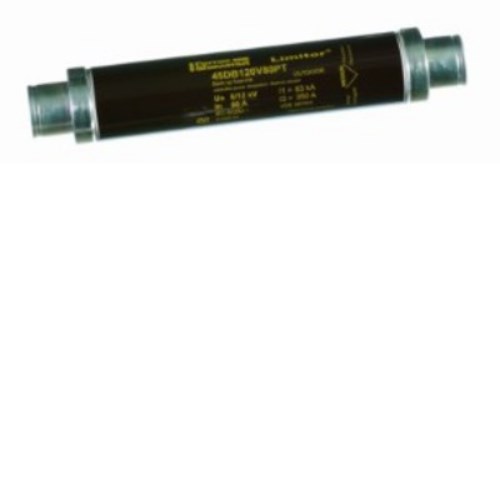

When it comes to safeguarding your high voltage systems, choosing the right HV Fuse Link is crucial. Our HV Fuse Link offers a reliable solution designed for industrial and commercial applications. With a rated current of 100 A and a robust breaking capacity of 63 kA, this fuse link ensures dependable protection for your equipment.
Operating at a rated voltage of 12 kV, this fuse link is well-suited for medium-voltage applications. Its compact dimensions—78 mm in diameter and 292 mm in length—make it easy to integrate into existing systems without requiring substantial space modifications. The clip mounting type further simplifies installation, ensuring secure and efficient placement within your setup.
Constructed with durability in mind, the body of the fuse link is made from ceramic material, known for its excellent insulating properties and resilience under high temperatures. This choice of insulation material contributes to the overall reliability of the product in demanding environments.
The terminal connections are crafted from silver-plated copper, offering superior conductivity while minimizing energy loss due to resistance. This feature ensures that power dissipation remains at an optimal level with a value of 156 W.
To enhance operational safety and maintenance efficiency, our HV Fuse Link includes an integrated striker indicator with an activation force of 80N. This provides clear visual feedback when the fuse has operated, facilitating quick identification during inspections or replacements.
Weighing in at 6.834 lb, this fuse link balances substantial build quality with manageable handling during installation or replacement procedures. The cylindrical terminal type enhances compatibility with various connection configurations commonly found in industrial settings.
In summary, this HV Fuse Link combines practical design elements with robust materials to deliver reliable performance across diverse electrical installations. Whether you're upgrading existing infrastructure or embarking on new projects, this product offers peace of mind through its proven technical specifications and construction integrity.
