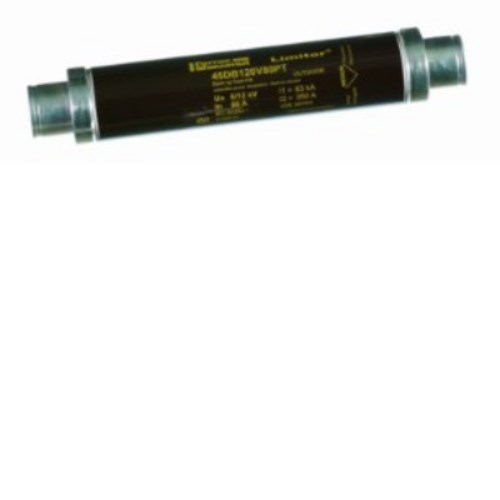

Mersen 45DB120V160P Fuse Link 160A 12 kV 88mm Dia x 292mm L 63kA Medium Striker Striker 80N

Product Code: 45DB120V160P

  • Rated for 160 A, 12 kV applications
  • High breaking capacity of 63 kA
  • Durable ceramic body construction
  • Striker indicator with 80N force
  • Silver plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Indication Striker 80N
Minimum Breaking Capacity (A) 560
Rated Current (A) 160
Rated Voltage AC (V) 12000
Weight (kg) 3.7
Breaking Capacity AC (kA) 63
Fuse Size (mm) 88D x 292L
Power Dissipation at In (W) 217
Clearing I²t at Rated Voltage (kA²s) 500
Product Type Fuse Link
Brand MERSEN
Body Material Ceramic
Body Style Cylindrical
Breaking Capacity 63 kA
Connection/Terminal Material Silver Plated Copper
Contact Material Silver-Plated Copper
Fuse Size 88 mm Dia x 292 mm L
Indicators Striker 80N
Insulation Material Ceramic
Material Ceramic
Mounting Type Clip
Power Dissipation 217 W
Rated Current 160 A
Rated Voltage 12 kV
Standards and Approvals IEC 60282-1, VDE 0670 part 4, DIN 43625
Terminal Type Cylindrical
Weight 8.157 lb
