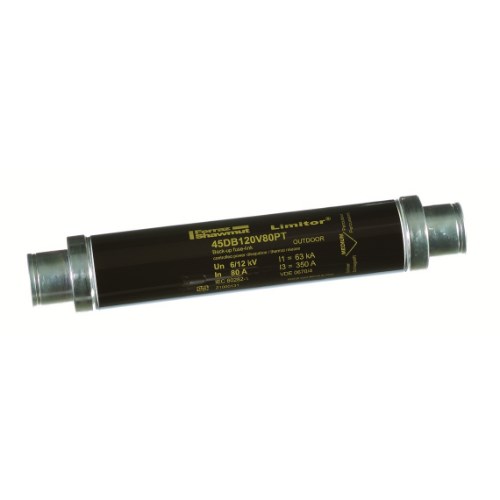

When it comes to ensuring safety and reliability in high-voltage applications, selecting the right fuse link is crucial. The HV Fuse Link detailed here offers a robust solution for industrial and commercial settings requiring dependable overcurrent protection.
Designed with precision, this HV Fuse Link supports a rated current of 1 A and can handle voltages up to 12 kV, making it suitable for a variety of high-voltage environments. Its impressive breaking capacity of 63 kA ensures that it can effectively interrupt fault currents, protecting equipment and maintaining operational integrity.
The physical dimensions of the fuse are 56 mm in diameter and 292 mm in length, which complements its weight of 3.748 lb, making it manageable yet substantial enough for secure installation. This fuse link is mounted using clips, allowing for straightforward integration into existing systems without the need for complex tools or processes.
One notable feature is its striker indicator with an operating force of 80N. This provides a clear visual indication when the fuse has operated due to overcurrent conditions, facilitating quick identification and replacement when necessary.
Constructed from durable ceramic materials both in body and insulation components, this fuse link offers excellent thermal stability and electrical insulation properties. The choice of ceramic ensures longevity even under demanding conditions where heat resistance is vital.
For optimal conductivity and minimal power loss at connection points, the terminals are crafted from silver-plated copper. This combination enhances performance by reducing contact resistance while also providing corrosion resistance—a significant benefit in harsh industrial environments.
With power dissipation rated at just 1.6 W, this HV Fuse Link minimizes energy wastage during operation—an important consideration for efficiency-conscious operations aiming to reduce overall energy consumption without compromising on safety standards.
In summary, this HV Fuse Link combines quality materials with thoughtful design features like clip mounting and striker indicators to deliver reliable performance in high-voltage applications across various industries. Its specifications make it an ideal choice for professionals seeking effective protection against overcurrents while ensuring ease of maintenance through clear operational indicators and durable construction materials.
