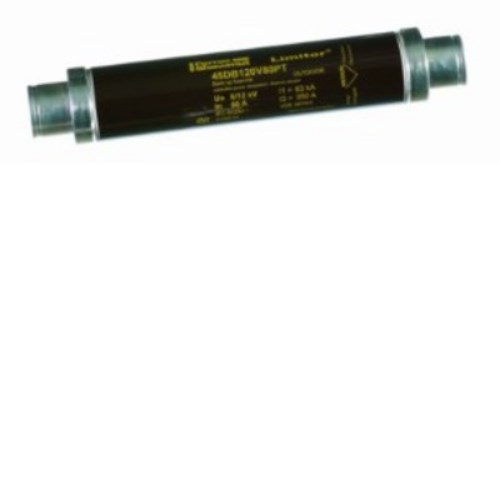

In the realm of high-voltage electrical systems, selecting the right fuse link is crucial for ensuring system reliability and safety. The HV Fuse Link with a rated current of 20 A and a rated voltage of 12 kV is engineered to meet the demands of both industrial and commercial applications. Its robust design makes it suitable for environments where dependability is non-negotiable.
This fuse link boasts a breaking capacity of 63 kA, allowing it to handle substantial fault currents without compromising on performance. The clip mounting type ensures an easy installation process, making it convenient for technicians working in various settings.
The dimensions are practical with a diameter of 56 mm and a length of 292 mm, fitting seamlessly into standard setups. Weighing in at 3.748 lb, this fuse link balances durability with ease of handling during installation or maintenance tasks.
A notable feature is its striker indicator with an impressive force of 80N, providing clear visual confirmation when the fuse has operated. This aids in quick diagnostics and minimizes downtime by allowing rapid identification and replacement when necessary.
Power dissipation stands at 38 W, reflecting efficient energy management within your electrical system while maintaining optimal operational temperatures. The cylindrical terminal type facilitates secure connections that are less prone to loosening over time.
Constructed from high-quality materials, this product features a ceramic body known for its excellent thermal resistance and insulating properties. Silver-plated copper terminals ensure superior conductivity while resisting oxidation and corrosion over time, enhancing longevity even under demanding conditions.
In summary, this HV Fuse Link combines critical technical specifications with reliable construction materials to offer an effective solution for protecting electrical systems against overloads or faults. Whether you're managing an industrial plant or overseeing commercial installations, this product provides peace of mind through its robust performance characteristics tailored to meet stringent safety standards.
