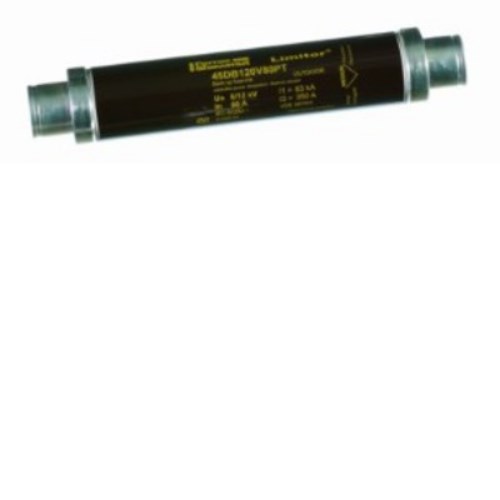

Mersen 45DB120V31.5P HV Fuse-Link 31.5A 12 kV 56mm Dia x 292mm L Cylindrical 63kA Ceramic Medium Striker Striker 80N

Product Code: 45DB120V31.5P

  • Rated for 31.5 A and 12 kV applications
  • High breaking capacity of 63 kA
  • Durable ceramic body construction
  • Features a striker indicator with 80N force
  • Silver plated copper contacts for reliable connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Indication Striker 80N
Minimum Breaking Capacity (A) 105
Weight (kg) 1.7
Breaking Capacity AC (kA) 63
Fuse Size (mm) 56D x 292L
Power Dissipation at In (W) 65
Clearing I²t at Rated Voltage (kA²s) 10
Rated Current (A) 31.5
Rated Voltage AC (V) 12000
Product Type HV Fuse-Link
Brand MERSEN
Body Style Cylindrical
Breaking Capacity 63 kA
Contact Material Silver Plated Copper
Fuse Size 56 mm Dia x 292 mm L
Indicators Striker 80N
Material Ceramic
Mounting Type Clip
Rated Current 31.5 A
Rated Power 65 W
Rated Voltage 12 kV
Standards and Approvals IEC 60282-1, VDE 0670 part 4, DIN 43625
Weight 1.7 kg
