Fuse Fittings

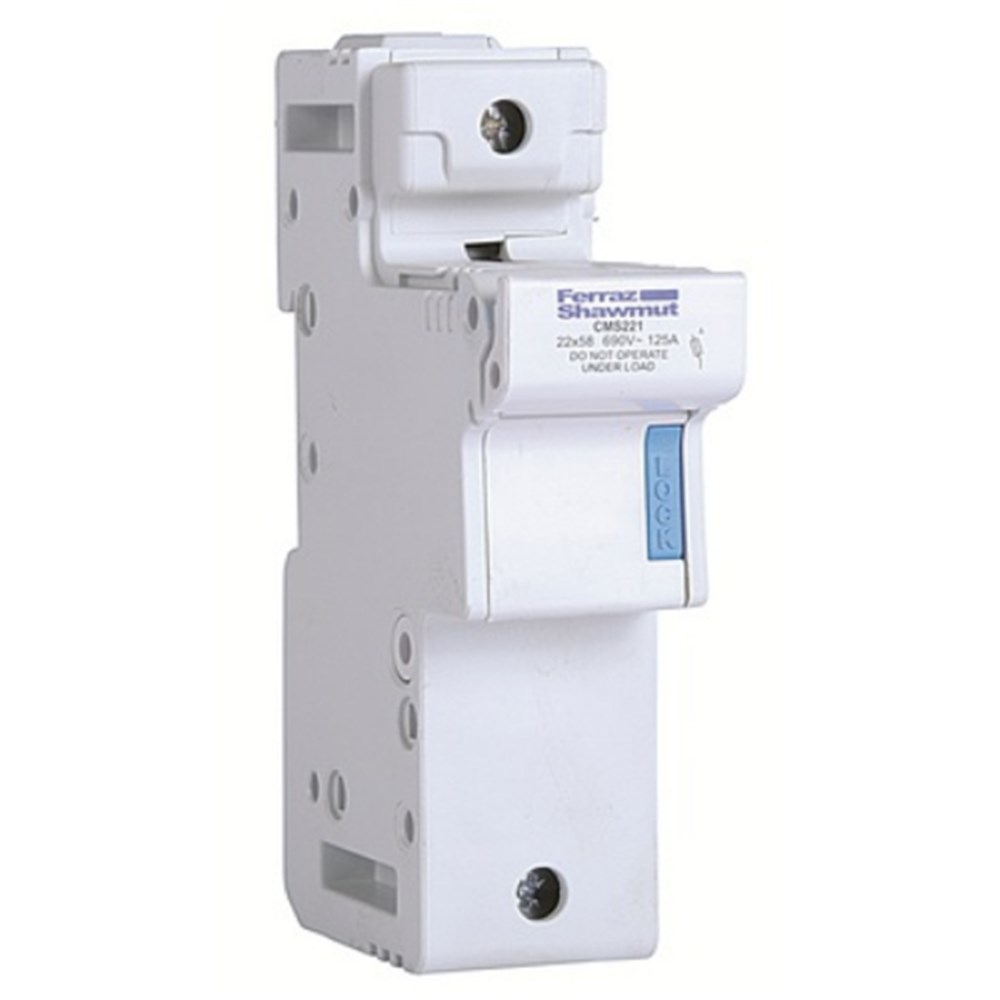

MERSEN CMS221S FUSE HOLDER 125A 690VAC/DC 1P+NEON FUSE BLOWN INDICATOR DIN MOUNT MAXIMUM CABLE 35mm² FOR 22X58mm FUSES

Product Code: CMS221S

CMS22_S is a finger-safe IEC cylindrical, modular fuse holder with a neon blown fuse indicator. It is specifically designed to protect motors, transformers, and other industrial applications. The degree of protection for this product is up to IP20. It features padlocking in the open position for added security. CMS22_S complies with standards such as IEC269-2-1, BS88-1, and AS60269. This fuse holder has 1 pole and is rated for a current of 125A and a voltage of 690VAC/VDC.

Technical Specifications

Brand MERSEN
Degree of Protection IP20
Fuse Size (mm) 22 x 57
Maximum Cable Entry (mm²) 35
Mounting Type DIN Rail
No. of Poles 1P
Rated Current (A) 125
Rated Voltage AC/DC (V) 690
