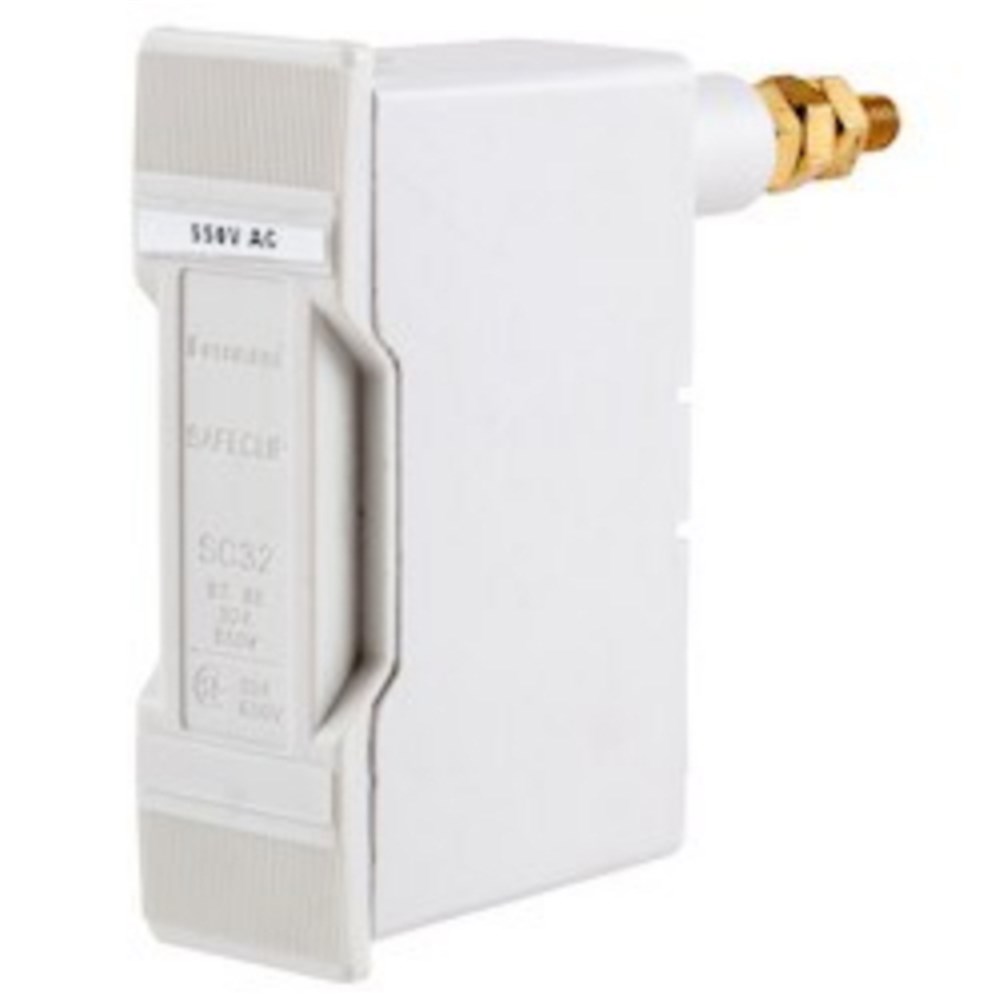

IPD SC32PWH FUSE FITTING 32A SAFECLIP 2 STUD CONNECTION, WHITE USE SC20/32LINK FOR NEUTRAL

Product Code: SC32PWH

The SC_PWH 2 stud connected clip-in LV fuse fittings (white) are IP20 finger-safe fuse holders specifically designed for utility and industrial installations. These fuse fittings have self-cleaning and self-aligning base contacts, ensuring optimal performance. They can be easily mounted on a DIN rail using the removable carrier. The SC_PWH fuse fittings comply with the standards BS88-1 & 6, AS60269, and IEC269-2-1. With a rated current of 32A, they provide reliable protection for your electrical system.

Technical Specifications

Remove Yes
Brand IPD
Body Size (mm) 75.5H x 26.5W x 54D
Breaking Capacity AC (kA) 80
Carton Quantity 5
Colour White
Connection Type 2 Stud Connection
Degree of Protection IP20
Mounting Type DIN Rail
Rated Current (A) 32
Rated Voltage AC (V) 415
Suitable Type of Neutral Link SC20/32LINK
