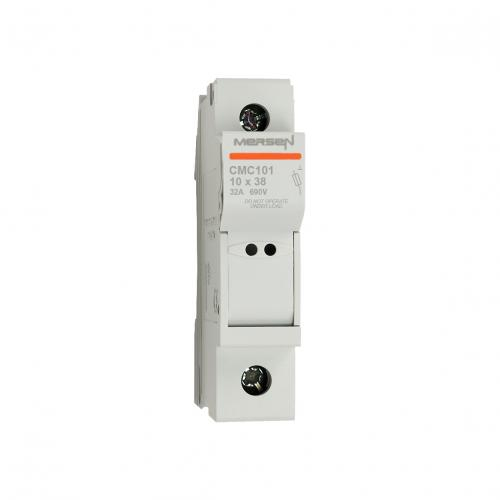

MERSEN CMC101 FUSE HOLDER 32A 690VAC 1P DIN MOUNT MAXIMUM CABLE 16mm² 10X38mmP1062705

Product Code: CMC101

The CMC10 fuse holders are compact and finger-safe IEC cylindrical modules designed for protecting motors, transformers, and other industrial applications. They have a degree of protection up to IP20 and can be padlocked in the open position. These fuse holders comply with standards IEC269-2-1, BS88-1, and AS60269. They have 1 pole and a rated current of 32A with a voltage rating of 690VAC.

Technical Specifications

Brand MERSEN
CAD Block https://media.bluestonepim.com/50098aaa-684d-40aa-945d-038656764549/81e93259-d9ac-4fe8-a483-09ca969f29a6/qS2Bnh99vuN7xn5gjOAJis3ft/jc9wt77gGUyc2pt8Xw1eY3KGt.dwg?targetFileName=CAD%20Block.dwg
Degree of Protection IP20
Fuse Size (mm) 10 x 38
Maximum Cable Entry (mm²) 16
Mounting Type DIN Rail
No. of Poles 1P
Rated Current (A) 32
Rated Voltage AC (V) 690
