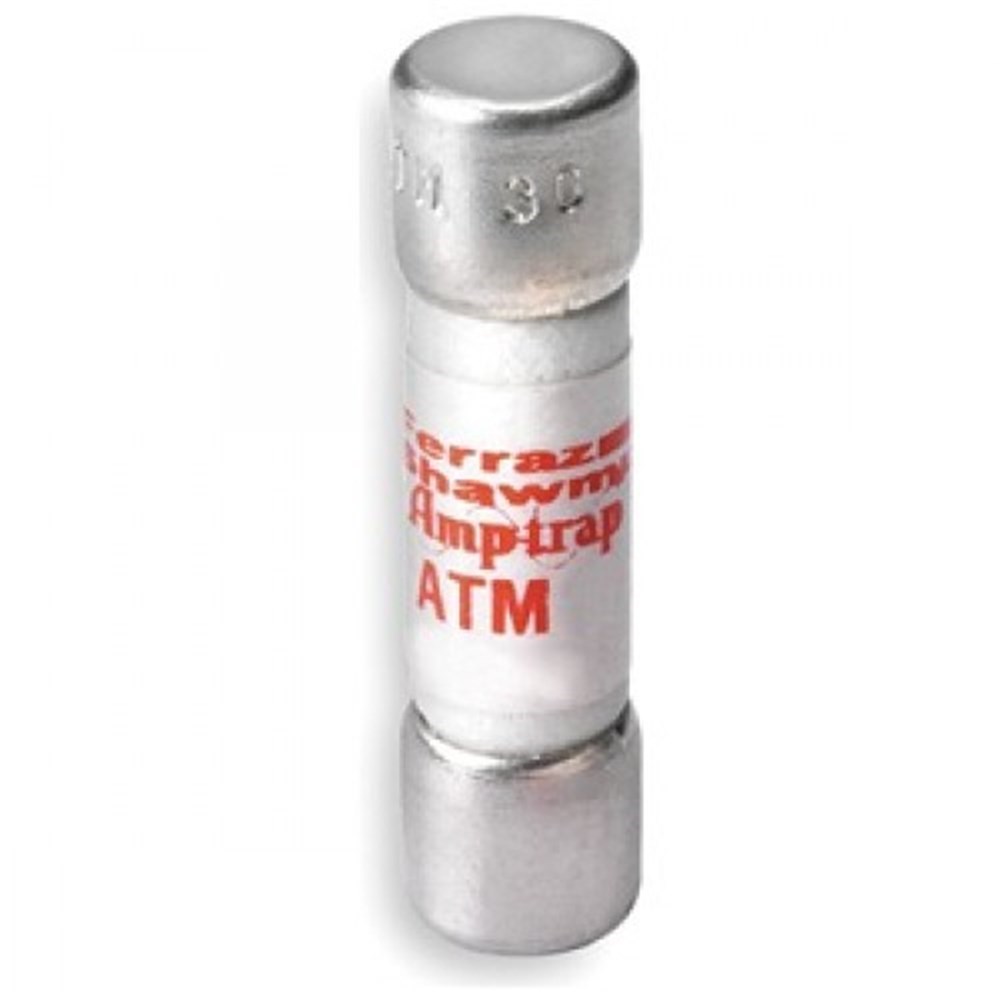

Mersen ATMR0.25 Power Fuse 0.25A 600VAC/DC Class CC Rejection 0.41 in Dia x 1.5 in L 200kA Fast Acting

Product Code: ATMR0.25

  • Rated for 0.25 A, 600 VAC/VDC
  • High breaking capacity of 200 kA
  • Compact size: 0.41 in Dia x 1.5 in L
  • Class CC rejection style fuse
  • Tin plated copper terminals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 10 x 38
Functionality Fast Acting
Rated Current (A) 0.25
Rated Voltage AC/DC (V) 600
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Product Type Power Fuse
Brand MERSEN
Body Material GMG
Body Size 0.41 in Dia x 1.5 in L
Body Style Rejection
Breaking Capacity 200 kA
Connection/Terminal Material Tin Plated Copper
Fuse Class Class CC
Insulation Material GMG
Mounting Type Clip
Rated Current 0.25 A
Rated Frequency 50/60 Hz
Rated Voltage 600 VAC/VDC
Terminal Type Ferrule
Weight 0.017 lb

Description

ATMR fast-acting rejection style fuses are ideal for branch circuit protection. They offer economical protection for control circuits and control circuit transformers with short circuit currents exceeding 10kA. These fuses have a voltage rating of 600VAC/DC and a rated current of 0.25A. They can interrupt available short circuit currents up to 200kA/AC and 100kA/DC.
